What this CPU brings to a panel

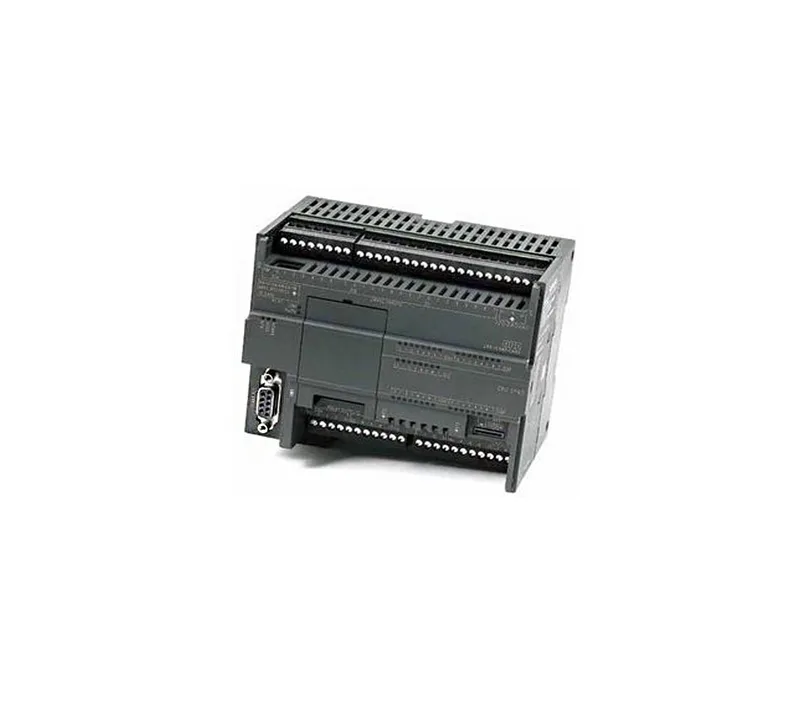

This is the Siemens S7-1200 CPU 1212C, order code 6ES7288-1SR20-0AA0, an AC-powered relay-output controller with 12 KB of program memory and a hardware clock that holds for 7 days without battery backup. It supports LAD, FBD, and STL programming, so whatever your in-house standard is — ladder, function block, or statement list — this CPU handles it without a translation step. The I/O map is 144 bytes each for inputs and outputs, which breaks down to 256 bits of digital plus 56 words of analog per side. That's enough for a small machine cell with a mix of pushbuttons, prox sensors, and a couple of analog transmitters — think a packaging station or a pump skid. Per-device maximums are 128 bytes each way, so the backplane bandwidth is the limiter, not the CPU. It carries six high-speed counters: four single-phase channels at 200 kHz and two at 30 kHz, or four A/B quadrature channels at 100 kHz and two at 20 kHz. That's enough for encoder feedback on a servo axis or high-speed counting on a filling line. The PID controller handles up to 8 loops with continuous or binary outputs and auto/manual mode — no separate loop controller needed for a small process skid.
Fieldbus and connectivity
PROFINET is onboard with autonegotiation and autocrossing, so you can plug into a standard switch or direct-connect to a programming laptop without a crossover cable. The minimum update time is 4 ms, but that depends on the IO device count and configured data — keep it lean for deterministic motion. RS-485 is also built in, running up to 187.5 kbps, for Modbus RTU or USS drives. PROFIBUS requires the CM DP module, so factor that into the BOM if you're tying into an older DP network. That's a compact footprint for a panel with limited rail space. The AC supply accepts 120 V or 230 V, and the power supply is transformer-isolated at 1500 V AC, so you get clean separation between line and logic.
Environmental range and approvals
CE marked for the European market. The RTC is maintenance-free — no battery to swap — and holds time for 7 days after power loss, which is enough to survive a long weekend shutdown.
