6ES7332-7ND02-0AB0 - Siemens
MPN6ES7332-7ND02-0AB0
End of Life

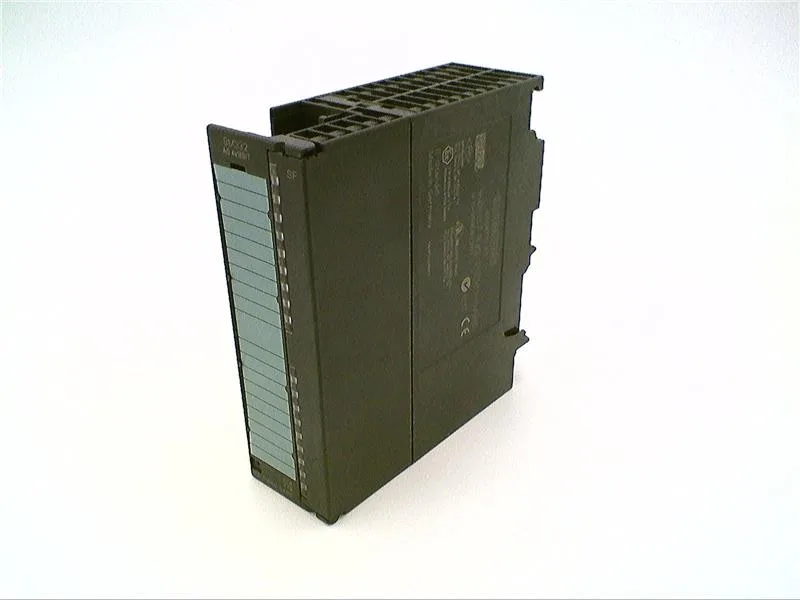

SIMATIC S7-300, Analog output SM 332, isolated by channel, 4 AI, Resolution 16 bit, 0-10 V, 1-5 V, +/-10 V, +/-20 mA, 0/4-20mA, 20-pole, suitable for isochronous mode improved bus cycle times for the isochronous mode
$577.85 – $1,170.00Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Outputs
| Parameter | Value |
|---|---|
| Number of analog outputs | 4; Isochronous mode |
| Output range: -10 V to +10 V | Yes |
| Output range: 0 to 10 V | Yes |
| Output range: 1 V to 5 V | Yes |
| Output range: 0 to 20 mA | Yes |
| Output range: 4 to 20 mA | Yes |
| Output range: -20 mA to +20 mA | Yes |
| Load resistance, current outputs, max. | 500 Ω |
| Load resistance, voltage outputs, min. | 1 kΩ |
| Current output, no-load voltage, max. | 18 V |
| Voltage output, short-circuit current, max. | 40 mA |
| Voltage output, short-circuit protection | Yes |
| Inductive load, current outputs, max. | 1 mH |
| Capacitive load, voltage outputs, max. | 1 µF |
| Cable length, shielded, max. | 200 m |
Performance
| Parameter | Value |
|---|---|
| Resolution (incl. sign, with overrange), max. | 16 bit |
| Error, voltage output (rel. to output range) | 0.02 % |
| Error, current output (rel. to output range) | 0.02 % |
| Conversion time (per channel) | 200 µs; in isochronous mode 640 µs |
| Settling time, resistive load | 0.2 ms |
| Settling time, inductive load | 0.5 ms |
| Settling time, capacitive load | 3.3 ms |
Power
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Power loss (typ.) | 3 W |
| Current consumption from backplane bus (5 V DC), max. | 120 mA |
| Current consumption from load voltage L+ (no load), max. | 290 mA |
| Reverse polarity protection | Yes |
Diagnostics
| Parameter | Value |
|---|---|
| Diagnostics function | Yes; Parameterizable |
| Diagnostic interrupt/alarm | Yes; Parameterizable |
Isolation
| Parameter | Value |
|---|---|
| Isolation: channels to backplane bus | Yes |
| Isolation: between channels | Yes |
| Isolation test voltage | 1 500 V DC |
Mechanical
| Parameter | Value |
|---|---|
| Front connector required | 20-pin |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 117 mm |
MPN
6ES7332-7ND02-0AB0
