Drive ratings and overload capability

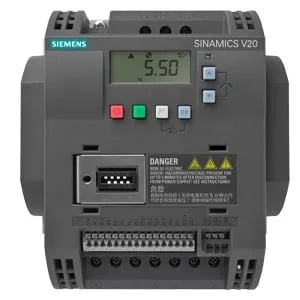

The 6SL3210-5BE31-1UV0 is a SINAMICS V20 basic converter rated 11 kW at 380-480 V 3 AC, 47-63 Hz. It delivers 150% overload for 60 seconds — that extra headroom handles the inrush of a loaded conveyor or a pump starting against a closed valve without tripping the drive on overcurrent.
I/O and fieldbus integration
The drive carries 4 digital inputs, 2 digital outputs, 2 analog inputs, and 1 analog output. Fieldbus connectivity is USS and MODBUS RTU via the built-in BOP (Basic Operator Panel). For a controls integrator wiring a line, the MODBUS RTU port ties into a PLC scan cycle without an extra gateway — the parameter set maps directly to the drive's register map.
Compliance and documentation
RoHS compliant since 05-07-10. REACH Article 33 duty to inform applies — the part contains lead (CAS-No. 7439-92-1) above 0.1% w/w. Export control classification is AL: N / ECCN: N, so it ships without an export license to most destinations. The product status is active per the manufacturer's lifecycle record.
Physical and packaging details
Packaged singly, dimensions 270 x 290 x 220 mm. The drive itself measures 240 x 207 x 173 mm (WxHxD) with IP20 / UL open-type protection — suitable for enclosure mounting in a dry, non-washdown environment. The unfiltered variant means the installer must provide external EMC filtering if the application requires conducted emissions compliance to EN 61800-3 Category C2 or C3.
