Drive module for high-power cabinet builds

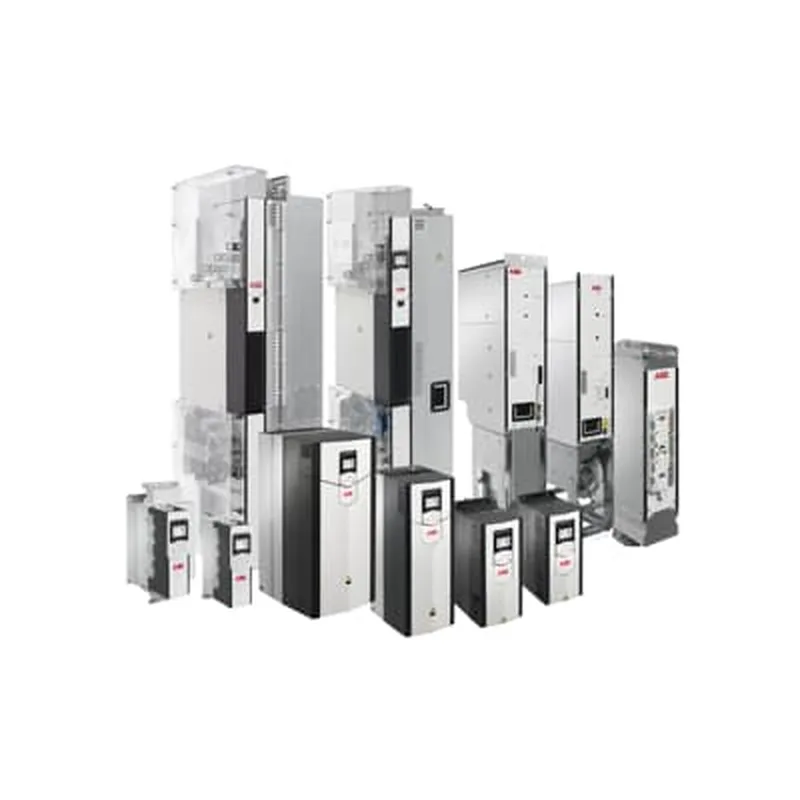

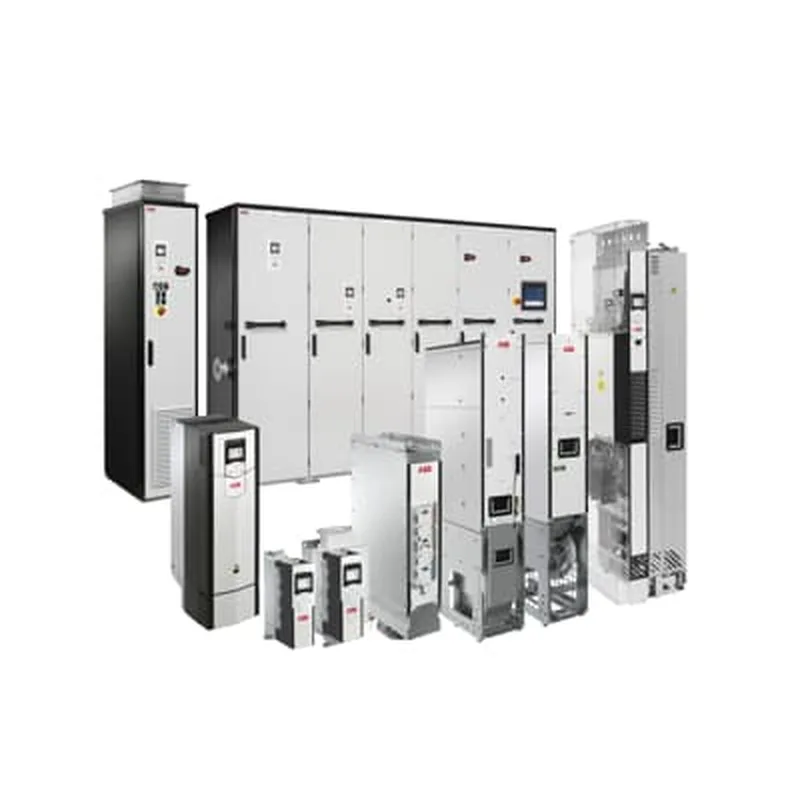

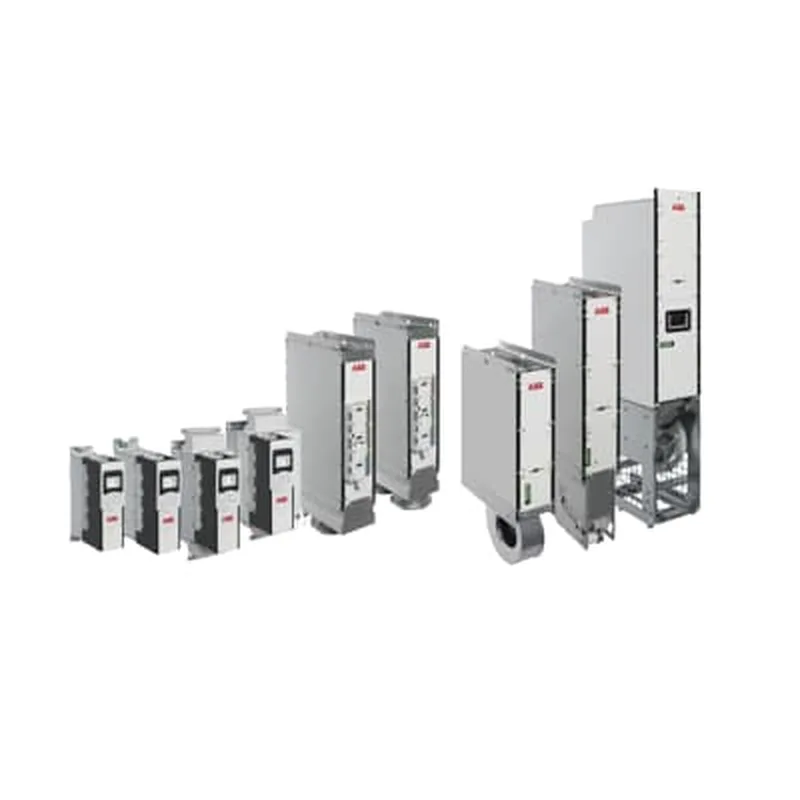

The 3AXD50000312337: The ABB ACS880-04FXT-1610A-5 is a drive module rated for 1000 kW motor power with a nominal input current of 1380 A. It ships in a 2xR11 frame size — two parallel R11 units sharing a common DC bus and control interface, sized for large motor loads like pumps, fans, or conveyors in a 400–500 V class installation. Acoustic noise sits at 78 dB(A) — expect audible fan and magnetic noise in an enclosed cabinet; plan for a separate drive room or acoustic enclosure if the panel is near occupied space.
The SCIP number b717701d-41f1-4695-811b-cee3682beed6 Finland is on file, which supports EU REACH/SCIP reporting obligations for the supply chain. Classified under WEEE Category 4 (Large Equipment, any external dimension > 50 cm) — factor end-of-life take-back and recycling compliance into the project plan.
Regulatory note
Energy efficiency data is not provided for this drive module — it is not considered a VSD and falls outside the scope of EU ecodesign requirements (Regulation EU/2019/1781). This is typical for drive modules that are integrated into a larger system rather than sold as standalone drives.
