What the module actually is

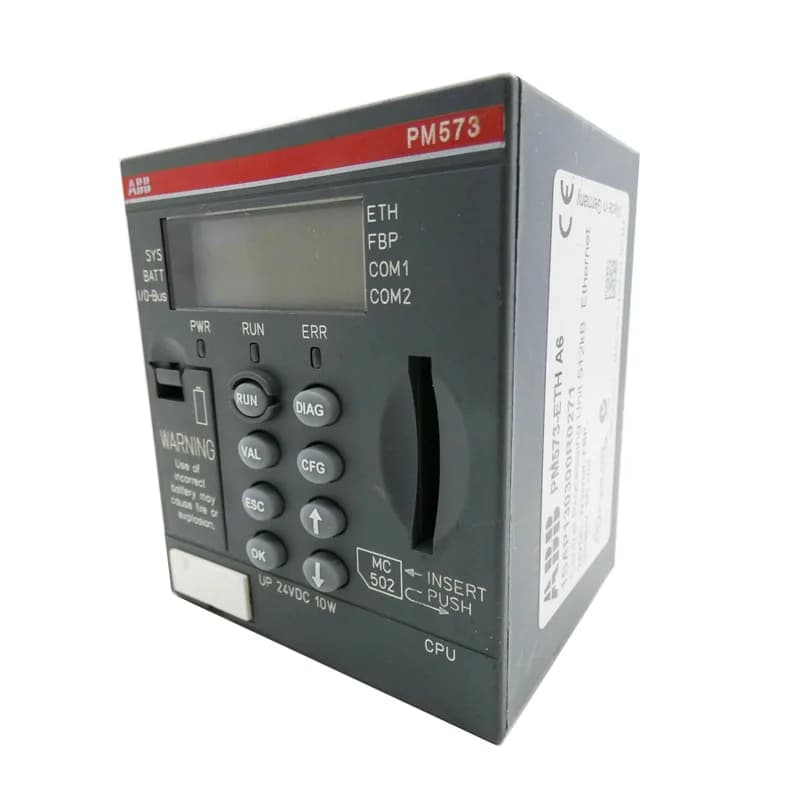

The ABB 1SAP130300R0271 is a processor module; the product main type lists PM573, and the description block tags it as PM573-ETH, so this code is the Ethernet-equipped variant of the PM573 CPU. It carries an LCD on the front face for local diagnostics without a programming terminal, and the controller processing time is 0.00006 ms per instruction.
Interfaces and the fieldbus slice
On the communication side the module exposes industrial Ethernet plus two configurable RS232/485 serial channels plus FBP, which together cover the usual distributed-automation trunks without adding an extra coupler module to the rack. The hardware-interface count explicitly lists 1 Industrial Ethernet port.
Power, environment and panel fit
Supply is 24 VDC nominal with an operating window of 20.4 to 28.8 VDC, so the panel PSU needs to hold output within that band through brown-out; the wide lower edge gives reasonable ride-through on a battery-backed 24 V bus, but anything that sags under 20.4 VDC during a load dump will reset the CPU. Rated voltage is the same 24 VDC the supply spec implies, and ambient air temperature for operation runs 0 to +60 °C — the module is rated for non-air-conditioned cabinets provided the internal cabinet temperature stays inside that ceiling. Degree of protection is IP20, which confirms the unit is meant for panel-internal mounting behind a closed door and not for field-side enclosure-less installation; field wiring has to terminate at the I/O slices, not at the CPU.
