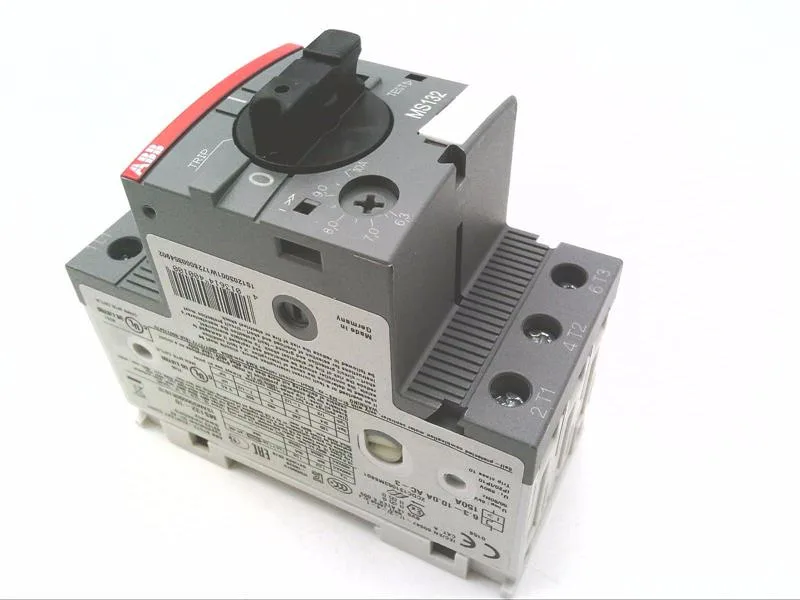

ABB MS132-10 Manual Motor Protector, 10 A, Trip Class 10

Name: MS132-10
Brand: ABB
SKU: MS132-10
Availability: LimitedAvailability
Author: Mobile-Repair Mona

MPNMS132-10

ABB MS132-10 Manual Motor Protector, 6.30–10.00 FLA, 3-phase, 600 VAC, Trip Class 10, 45 mm width, includes short circuit protection and phase failure detection.

$35.56Ref. price · indicative, final on quote

Add to RFQ

ABB MS132-10 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

MS132-10 — Specifications
Parameter	Value
Amps	10
Type	Manual Motor Protector
Phases	3
Amps range	6.300 - 10

Product details

The ABB MS132-10 is a 3-phase manual motor protector rated for 600 VAC, with an adjustable full-load ampere (FLA) range of 6.30 to 10 A.

The adjustable FLA dial lets you set the overload protection to match the motor nameplate — no separate heater elements to stock. At 10 A maximum, this unit covers motors from 6.30 to 10 A. That is a standard feature on this series, not an add-on module.

Where it goes in the panel

Snaps onto a DIN rail. The rotary handle extends through the enclosure door for local on/off and reset. It doubles as a disconnecting means because it has a marked OFF position that isolates the load side — meets the code requirement for a local motor disconnect in most jurisdictions.

Frequently asked questions

What is the FLA range of ABB MS132-10?

The adjustable FLA range is 6.30 to 10 A, set via the dial on the front of the unit.

What is the trip class of MS132-10?

Trip Class 10 — it will trip within 10 seconds under locked-rotor conditions, matching standard NEMA and IEC motor starting curves.

Can MS132-10 be used for single phase motors?

It is a 3-phase device. For a single-phase motor, you would typically use a different manual motor protector or a two-pole thermal breaker — this unit expects three poles to monitor.
