What the ratings mean for fit

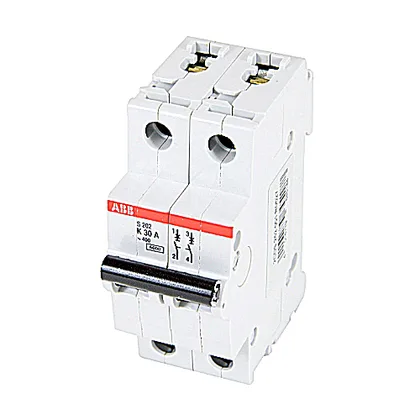

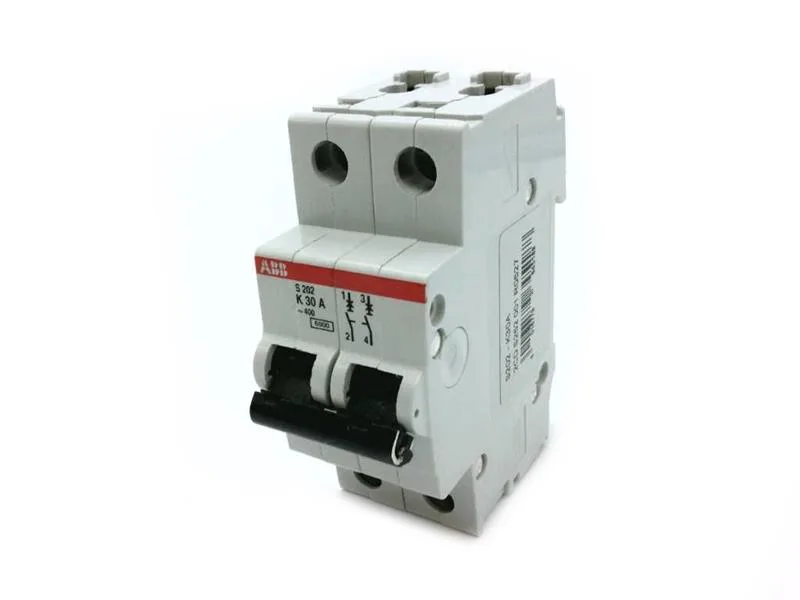

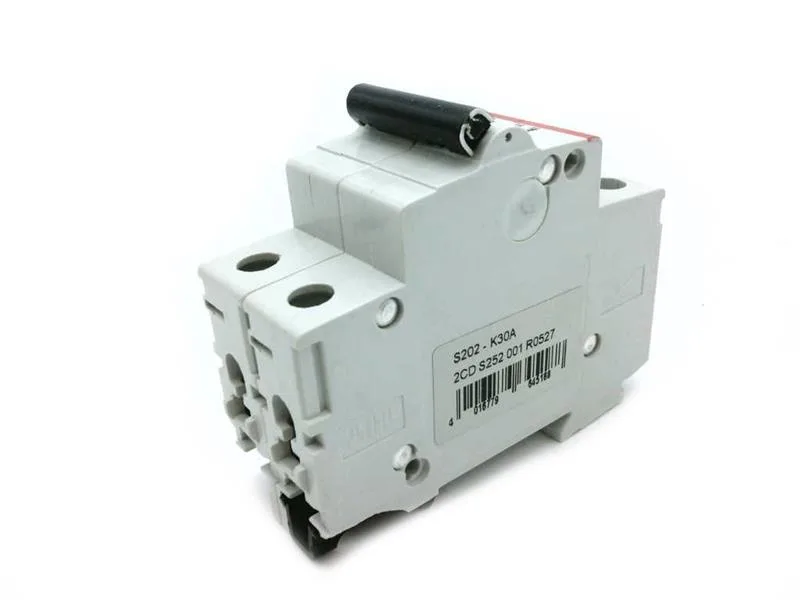

The ABB S202-K30 is a 30 A, 2-pole miniature circuit breaker with a Trip Curve K characteristic, rated at 277 VAC and a 6 kA interrupting capacity. It mounts on a standard DIN rail — snaps in, no screws, which keeps panel integration fast and the enclosure fill factor predictable. The 30 A rating means it protects a circuit drawing up to that continuous current; the 6 kA interrupting rating means it can safely clear a fault up to that level without welding contacts or cascading upstream. Trip Curve K is the key spec here: it sits between B and C curves, with a magnetic trip threshold of 8–12x rated current. That makes it a good fit for inductive loads like small motors, transformers, and solenoid valves where the inrush would nuisance-trip a B or C curve but the circuit still needs short-circuit protection. It's not for general lighting or resistive loads — those want a B or C curve. The 2-pole configuration protects both legs of a single-phase 277 VAC circuit or a 480Y/277 VAC line-to-neutral tap.
Deployment context
DIN rail mount means it integrates into a standard control panel enclosure — snaps onto the rail, shares the same busbar system as other modular devices. The 2-pole width takes up two 18 mm module spaces. In a cement plant or similar dusty environment, the sealed thermoplastic housing keeps the grit out of the trip mechanism; no breathing parts to clog. Rated for 277 VAC, so it handles the common control voltage in North American industrial panels without derating.
