ABB S202-K4

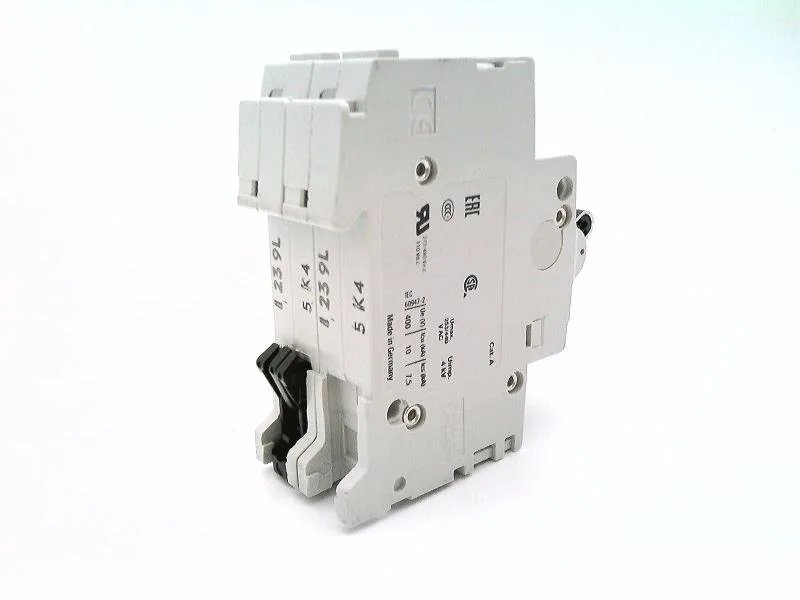

S202-K4 ABB S200 Series 4A K-Curve 2-Pole Miniature Circuit

MPN S202-K4

ABB S200 Series, S202-K4, 2-pole supplemental protector, 4 A, K-curve, 277 V AC, 6 kA interrupting rating, DIN rail mount.

$16.66 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S202-K4 specifications
ParameterValue
Product typeTrip Curve K
Current4 A
Breaking capacity6 kA
Poles2
MountingDIN Rail

Product details

What the K-curve means for your circuit

The S202-K4 is a 2-pole supplemental protector from ABB's S200 series, rated 4 A at 277 V AC with a 6 kA interrupting capacity. The K-curve trips between 8 and 12 times rated current — faster than a D-curve on moderate overloads but slower than a B or C curve, which makes it a common choice for motor branch circuits, transformer primaries, and inductive loads where you need to ride through inrush without nuisance tripping. It's listed under UL 1077 as a supplemental protector, not a branch-circuit rated device, so it's intended for internal panel protection downstream of a listed branch breaker.

Two-pole form factor means it occupies two module widths — 36 mm total — which is the same footprint as the S202M-C10 and other S200 2-pole siblings, so swapping between them requires no rail repositioning or busbar rework.

MPN
S202-K4
