ABB S202P-Z20

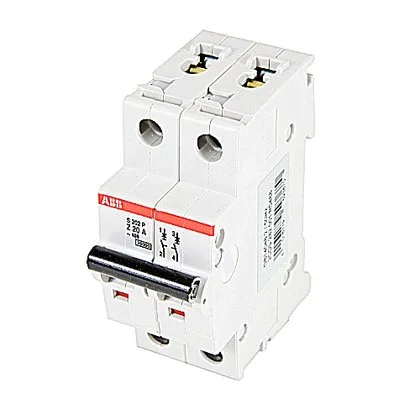

ABB S202P-Z20 MCB 2P Z 20A 277VAC, Trip Curve Z

MPN S202P-Z20

ABB, System Pro M Compact S200P, miniature circuit breaker, S202P-Z20, 2-pole, 20 A, Trip Curve Z, 277 VAC, 10 kA interrupting rating.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S202P-Z20 specifications
ParameterValue
Product typeTrip Curve Z
Current20 A
Breaking capacity10 kA
Poles2
MountingDIN Rail

Product details

The ABB S202P-Z20 is a 2-pole miniature circuit breaker from the System Pro M Compact S200P series, rated 20 A with a Trip Curve Z characteristic. The 20 A rating sets the continuous current the breaker carries without tripping — sized for a 20 A branch circuit on a 277 VAC line-to-neutral or 480Y/277 VAC wye system. Trip Curve Z means the magnetic trip operates between 40 and 60 A (2 to 3 times rated current), which is tighter than a B or C curve; it's intended for circuits with minimal inrush, like electronic loads, control transformers, or semiconductor protection where you want fast short-circuit clearing without nuisance trips from moderate overloads. The 10 kA interrupting rating at 277 VAC tells you this breaker can safely clear a fault current up to 10,000 A without welding contacts or rupturing the case. That's the standard interrupting capacity for most commercial panelboards and sub-distribution boards in North America — it coordinates with typical upstream transformer impedances. For higher available fault currents (above 10 kA), you'd need a breaker with a higher SCCR or a current-limiting upstream device.

Deployment context

Snaps onto standard 35 mm DIN rail in an enclosure or panel — the 35 mm width (2 modules) fits two pole spaces in a distribution board. The IP20 enclosure rating means it's protected against solid objects larger than 12 mm (fingers), but not against moisture; install it inside a panel with an IP40 cover or higher for washdown or outdoor environments. The black actuator is sealable and carries I/O marking for lockout/tagout compliance.
