ABB S271-K6 — 1-Pole MCB (DIN Rail)

ABB S271-K6 6A 1P DIN Rail MCB, Trip Curve K

MPNS271-K6

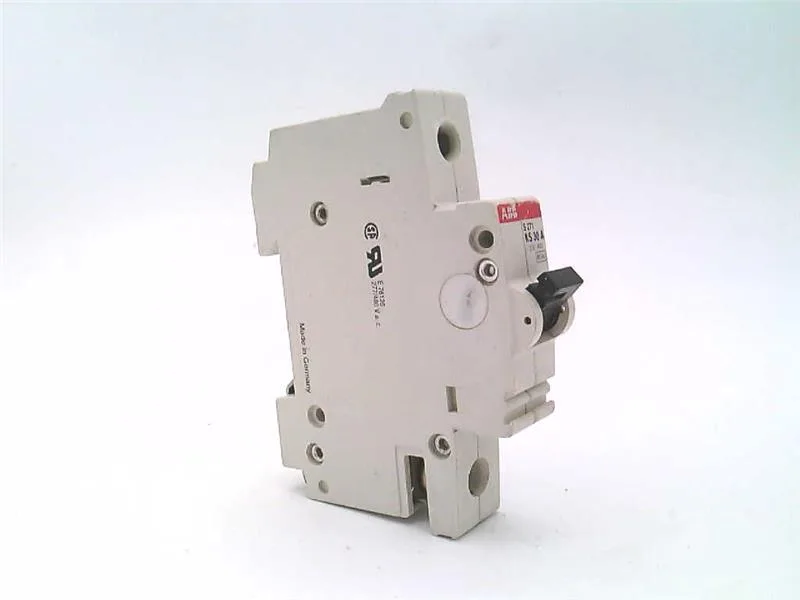

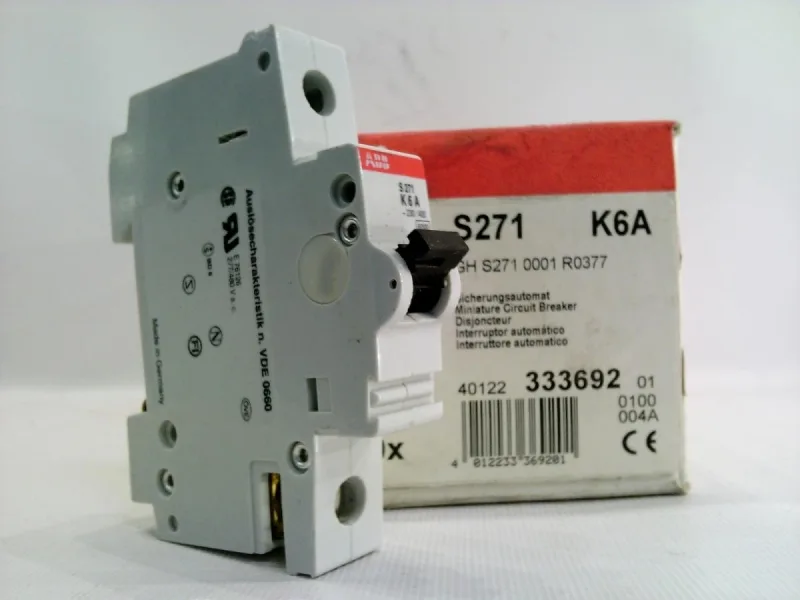

ABB S271-K6, 1-pole miniature circuit breaker, 6 A, Trip Curve K, DIN rail mount.

$53.47Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

S271-K6 — Specifications
ParameterValue
Amps6
TypeTrip Curve K
Poles1
MountingDIN Rail

Product details

The K curve means it's designed for motor and inductive loads — it holds through the inrush without nuisance tripping, then clears fast on a hard fault. Same part, different passport: this is the genuine ABB unit, current lifecycle per the manufacturer, available through independent distribution channels.

6 A is the continuous rated current — it's the load it can carry indefinitely at rated ambient. Trip Curve K has a magnetic trip threshold of roughly 8–12× In, so a 6 A unit will hold a motor starting surge of 48–72 A for a few cycles before the magnetic element trips. That's tighter than Curve D (10–20× In) but looser than Curve C (5–10× In). For a 1-pole breaker, that means it's protecting a single-phase motor or a transformer primary, not a lighting circuit. The 1-pole form factor snaps onto standard DIN rail, so it occupies one module width in the panel.

Panel integration

One-pole width (roughly 17.5 mm). Wire termination is via screw terminals — typical for this class. No special cutout or gland plate needed; it fits in any standard distribution board or sub-panel. For a 6 A motor branch circuit, pair it with a contactor and overload relay downstream; the K curve gives you the coordination window.

Frequently asked questions

How do I get current pricing and availability for S271-K6?

Submit an RFQ through this listing. Availability and current pricing are confirmed at quote time through our independent distribution network — we source across multiple channels to fill the order.

When sourcing S271-K6, what's the closest functional second-source — S201M-C10?

The S201M-C10 is a 1-pole 10 A breaker with Curve C, not Curve K. It will not drop in as a direct replacement for the S271-K6 without re-evaluating the trip coordination — the magnetic threshold and continuous rating differ. For a 6 A motor circuit, stick with the K curve.

What is S271-K6's listed amps (6) on this component line?

The S271-K6 is rated at 6 A continuous — that's the maximum load current it can carry without tripping under normal conditions.

What is S271-K6's listed type (Trip Curve K) on this component line?

The S271-K6 uses Trip Curve K, which trips magnetically at 8–12× In — suited for motor and transformer loads where inrush is higher than a resistive circuit.

Will S271-K6 drop into a panel that was specified around S201M-C10 without rewiring?

Mechanically yes — both are 1-pole DIN rail breakers with the same footprint. Electrically no — the S201M-C10 is 10 A Curve C, so swapping in a 6 A Curve K changes both the continuous rating and the short-circuit trip threshold. Verify the load and coordination study before substituting.

What compliance documentation does this brand provide for S271-K6 (RoHS, REACH, UL, IEC)?

ABB typically supplies CE, IEC/EN 60898-1, and UL 1077 declarations with the S271-K6 series. RoHS and REACH compliance statements are available on request through the distributor. The specific certifications for each production batch are marked on the side of the breaker.
