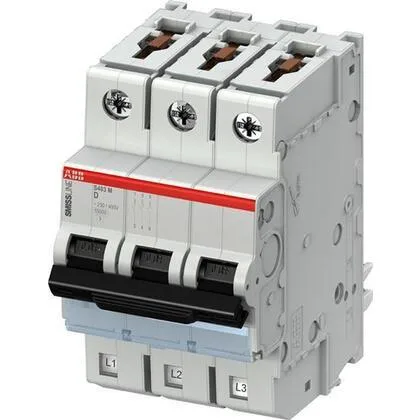

ABB S403M-D20 — 3-Pole MCB (DIN Rail)

ABB S403M-D20 S400 MCB 3P 20A Curve D 10kA

MPNS403M-D20

ABB S400 series, S403M-D20, 3-pole MCB, 20 A, Trip Curve D, 240 VAC, 10 kA interrupting, DIN rail.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

S403M-D20 — Identification
ParameterValue
Number of poles3
S403M-D20 — Electrical
ParameterValue
Voltage (AC)240
Current (A)20
S403M-D20 — Protection
ParameterValue
Interrupting rating (AC)10 kA
S403M-D20 — Mechanical
ParameterValue
Mounting typeDIN Rail
S403M-D20 — Other specifications
ParameterValue
TypeTrip Curve D
Family (Style)S400

Product details

The 10 kA interrupting rating at 240 VAC tells you it can safely clear a fault up to 10,000 A without welding contacts or venting gas into the panel; that's enough for most commercial and light industrial distribution boards, but if your available fault current is higher you'll need a current-limiting upstream device or a higher-rated breaker like the S803S series.

The S400 family shares the same 3-module width (about 54 mm) as most ABB compact MCBs, so it swaps into existing S200 or S500 panels without re-drilling the rail. Rated 240 VAC line-to-line, which covers most single-phase and three-phase 240 V systems; for 400 VAC three-phase applications you'd need the 400 V rated variant in the same family.

Frequently asked questions

What is the interrupting rating of S403M-D20?

10 kA at 240 VAC — enough for most commercial and light industrial distribution boards.

Will S403M-D20 drop into a panel that was specified around S803S-D63?

No — the S803S-D63 is a physically wider frame (63 A, 50 kA interrupting) and won't fit the same DIN position without a busbar adapter. The S403M-D20 uses the standard 3-module S400 footprint.

Where can I buy S403M-D20 and how is it quoted?

Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing confirmed at quote time.

MPN
S403M-D20
