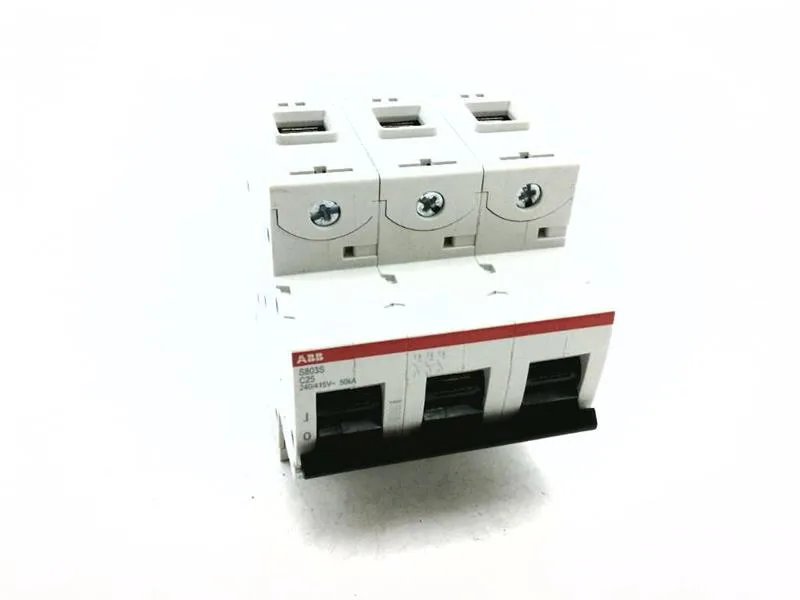

ABB S800S series, S803S-C25 miniature circuit breaker, 3-pole, 25 A, Trip Curve C, 50 kA interrupting capacity at 230 VAC, DIN rail mount.
| Parameter | Value |
|---|---|
| Amps | 25 |
| Type | Trip Curve C |
| Poles | 3 |
| Mounting | DIN Rail |
| Volts AC | 230 |
| Breaking capacity | 50 kA |
The 3-pole footprint occupies three modular 18 mm width units (54 mm total). No additional mounting plate or adapter needed — direct clip-in for enclosure backplates or sub-panel assemblies.
Sourced and quoted to order against an RFQ through independent distribution. Submit a request for current pricing and availability — no stock count or price is published here.
Rated 25 A continuous with a Trip Curve C magnetic trip characteristic, meaning the instantaneous magnetic trip operates at 5 to 10 times the rated current (125 A to 250 A), suitable for moderate inrush loads like small motors or lighting banks.
50 kA at 230 VAC, which covers high-fault installations where available short-circuit current is substantial — typical for industrial panel feeders close to the transformer.
