Omron CP1E-E20DR-A

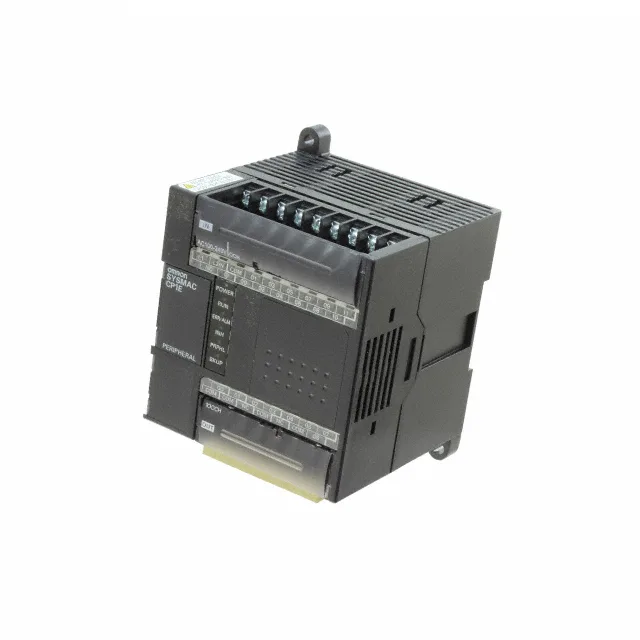

Omron CP1E-E20DR-A PLC, 12 Digital Inputs, 8 Relay Outputs

MPN CP1E-E20DR-A
Obsolete

Omron CP1E series PLC, CP1E-E20DR-A, 12 digital inputs, 8 relay outputs, 100-240 VAC supply, 2K words memory, non-expandable, chassis/DIN rail mount.

$83.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

CP1E-E20DR-A specifications
ParameterValue
SeriesCP1E
Display typeNo Display
Supply voltage100 to 240VAC
ProtocolUSB
MountingChassis Mount, DIN Rail
Temp operating max55 °C
Temp operating min0 °C
Weight0.816 lb (370.13 g)
PackageBulk

Product details

I/O and power — what fits the panel

The CP1E-E20DR-A carries 12 digital inputs and 8 relay outputs, enough for a standalone machine cell or a small packaging station where the I/O count is fixed at build time. Supply is 100–240 VAC, so it drops straight into a control panel fed from a standard mains transformer without needing a separate 24 VDC power supply for the CPU. Mounts on a DIN rail or directly to a chassis plate — the DIN clip is the faster install for a panel build, but the chassis holes give a vibration-resistant fit for mobile equipment.

Memory and expandability — the hard constraint

2K words of program memory is the ceiling — enough for a sequence of a few dozen rungs with timers and counters, but a motion profile or recipe table will eat that budget fast. Non-expandable means no local I/O rack or extra analog cards; the 12-in/8-out count is final. If the application needs more I/O later, the whole CPU gets swapped.

Lifecycle reality — obsolete, sourced to order

Available through independent surplus and broker channels. Quantities are lot-specific; availability and current pricing are confirmed at RFQ against the BOM line.

Approvals and compliance

Carries CE, cULus, Lloyd, and NK approvals — accepted in European, North American, and marine (Lloyd's, Nippon Kaiji Kyokai) installations.

MPN
CP1E-E20DR-A
