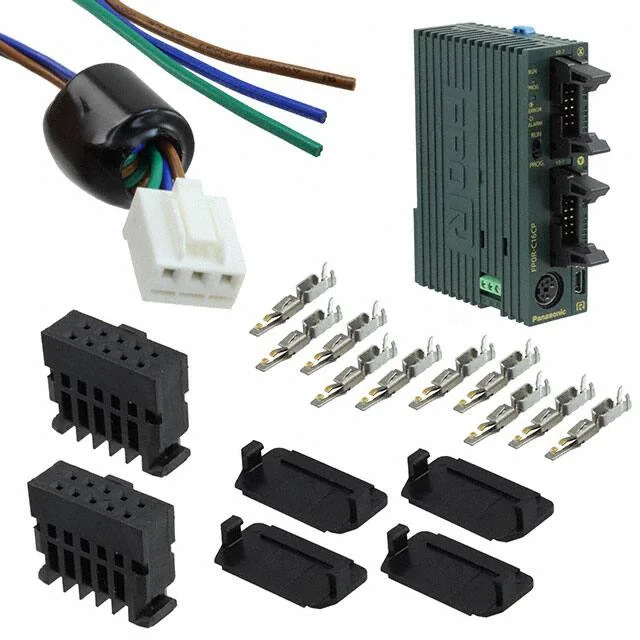

The Panasonic AFP0RC16CP is an FP0R-series compact controller with eight digital inputs and eight outputs configured as four pulse-train and four PWM channels, all running on a 24 VDC supply. The RS-232C port handles programming and basic serial comms; the DIN-rail mount and 12K-word memory suit it for standalone machine control or as a local I/O slice on a larger FP0R rack (up to three modules max).
The AFP0RC16CP's output stage is the main differentiator: four pulse-train outputs and four PWM outputs. Pulse-train outputs drive stepper or servo drives with position-indexing signals; PWM outputs handle variable-speed fans, heaters, or lamp dimmers directly. This mix means you can control one or two motion axes plus analog-style loads without adding an expansion module — the pulse/PWM split is hard-wired, so verify your axis count against the four pulse channels before locking the BOM. The RS-232C port is point-to-point only — no multi-drop. If your panel uses RS-485 for a daisy-chain of drives or HMIs, the AFP0RC16MP (same I/O count, RS-485 instead of RS-232C) is the drop-in alternative without rewiring the I/O field.
