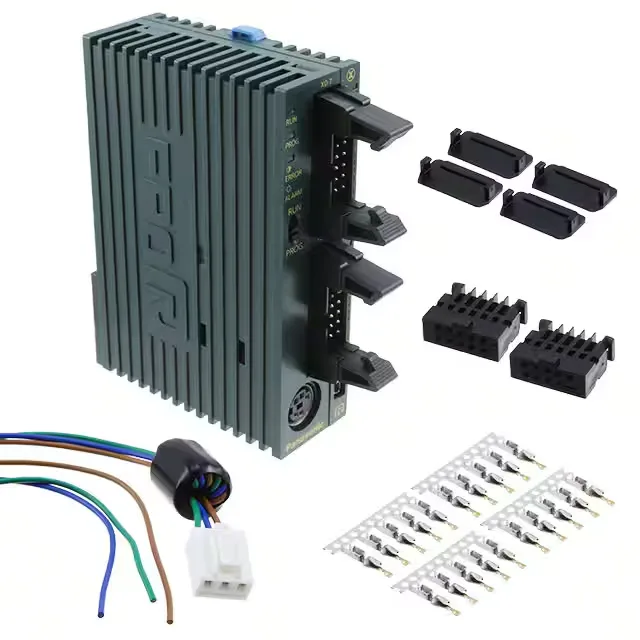

The Panasonic AFP0RC16P is a FP0R series compact PLC CPU with eight digital inputs and eight outputs — four configured as high-speed pulse outputs and four as PWM channels. It runs on 24 VDC and stores 12K words of program memory, enough for mid-size machine sequences or standalone cell control. The DIN-rail mount means it clips into any standard panel without drilling — no shop, no crane, just a rail clip. It's rated for 0°C to 55°C, so it'll sit in a warm cabinet without complaint.
I/O and expandability
The eight digital inputs handle standard 24 VDC sink/source signals from limit switches, proximity sensors, or pushbuttons. The output side is where this unit earns its keep: four pulse outputs can drive stepper drives or servo pulse-train inputs directly, and four PWM outputs are useful for analog-style control of valves, heaters, or variable-speed fans without an extra analog module. The CPU supports up to three expansion modules, so you can add analog I/O, thermocouple inputs, or extra digital points without swapping the base unit.
Programming is done via Panasonic's FPWINPRO7 software, which supports the full FP0R instruction set including high-speed counters, interrupt routines, and pulse/PWM control. The CPU has no built-in display or keypad — it's a headless unit meant for remote or panel-mounted operation where the HMI is separate. Approvals include CE and cULus, covering installation in European and North American industrial panels.
