Compact control with mixed pulse and PWM outputs

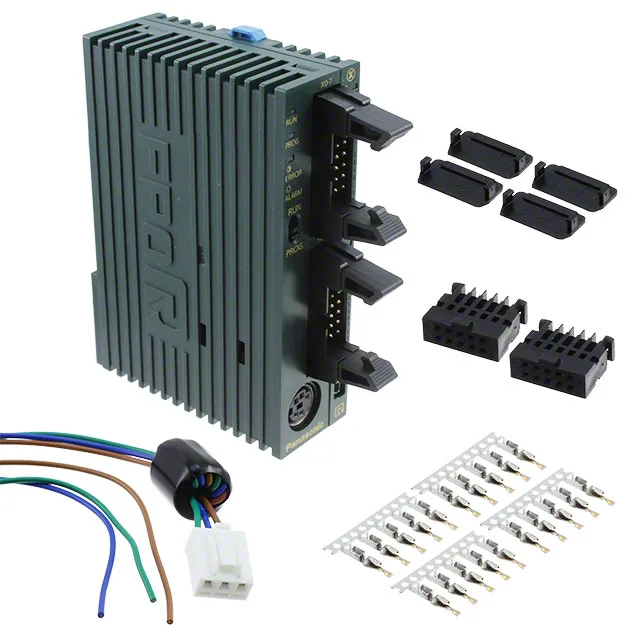

The Panasonic AFP0RC16T is a compact PLC from the FP0R series, built for applications that need both high-speed pulse outputs for stepper or servo positioning and PWM outputs for heater control or variable-speed fan drives. It runs on 24 VDC and provides 8 digital inputs plus 8 outputs split as 4 pulse and 4 PWM channels. Memory is 12K words, enough for moderate machine sequences, and the CPU can be expanded with up to 3 additional FP0R I/O or communication modules — useful when the base I/O count isn't enough or you need a fieldbus gateway. Programming is done via FPWIN PRO 7 software, which supports the full FP0R instruction set including high-speed counters, interrupts, and positioning control blocks.
Mounts on standard DIN rail. No display, so all configuration is done through the programming software — no front-panel keypad to worry about in the panel layout. The 24 VDC supply is typical for control cabinets; watch the inrush on power-up if sharing a supply with solenoids or contactors. The bulk packaging means it ships as a single unit with no accessories included — order the programming cable and expansion modules separately.
How the output mix matters
The 4 pulse outputs are transistor-sourced, rated for high-speed signaling to stepper drives or servo amplifiers — think indexing tables, pick-and-place axes, or conveyor positioning. The 4 PWM outputs can drive solid-state relays for temperature control loops or analog-like speed commands to VFDs via a PWM-to-analog converter. If your application needs only simple on/off outputs without speed control, the AFP0RC14RS (6 relay outputs) might be a better fit. But if you need any pulse or PWM capability, the AFP0RC16T is the correct choice — the relay version can't generate those signals.
