Schneider Electric 04041
MPN04041
Active

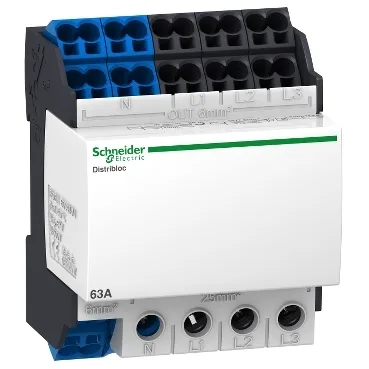

Linergy DX 4P distribution block 63A - 4 modules - 24 holes quick connect bottom
$87.72 – $130.73Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product / component type | Distribution block |
| Product name | Linergy DX |
| Range of product | Prisma Plus System P Prisma Plus System G |
| Product range | Linergy |
Electrical
| Parameter | Value |
|---|---|
| Rated current [In] | 63 A at 40 °C |
| Rated operational voltage [Ue] | 440 V AC |
| Rated insulation voltage [Ui] | 500 V AC |
| Rated impulse withstand voltage [Uimp] | 6 kV |
| Poles description | 4P |
Mechanical
| Parameter | Value |
|---|---|
| Connections / terminals | Supply: tunnel type terminal16 mm² (flexible) Supply: tunnel type terminal25 mm² (rigid) Distribution: spring terminal (phase) , 12 x 2.5...6 mm² (flexible) Distribution: spring terminal (phase) , 12 x 2.5...6 mm² (rigid) Distribution: spring terminal (neutral) , 12 x 2.5...6 mm² (flexible) Distribution: spring terminal (neutral) , 12 x 2.5...6 mm² (rigid) |
| Mounting support | DIN rail |
| Usable 9 mm pitches | 8 |
Environmental
| Parameter | Value |
|---|---|
| IP degree of protection | IPxx B |
| Pollution degree | 3 |
Approvals
| Parameter | Value |
|---|---|
| Standards | IEC 60947-7-1 IEC 61439-2 IEC 61439-1 |
MPN
04041
