Schneider Electric 04605
MPN04605
Obsolete

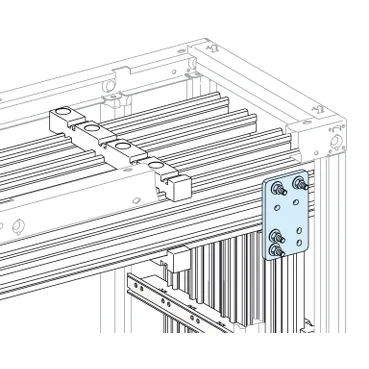

LINERGY LGYE VERT. LONG CONNECT. 2500A
$75.91 – $107.78Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product / component type | Connection |
| Product name | Prisma Prisma P enclosure Linergy Linergy LGYE busbar |
| Range of product | Linergy |
| Product range | Linergy |
Electrical
| Parameter | Value |
|---|---|
| Rated current [In] | 2500 A |
Mechanical
| Parameter | Value |
|---|---|
| Width | 100 mm |
| Height | 170 mm |
| Depth | 4 mm |
Approvals
| Parameter | Value |
|---|---|
| Standards | IEC 61439-2 IEC 61439-1 |
Other specifications
| Parameter | Value |
|---|---|
| Installed device | Connection: busbar vertical installation - top connection |
| Quantity per set | Set of 1 |
| Provided equipment | Fixing frame Fixing elements |
| Cubicle-device connection | Linergy busbar |
| [Ie] rated operational current | 2500 A |
MPN
04605
