Schneider 140CFH00800 Plc Expansion Modules — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Range of product | Modicon Quantum automation platform |
| Accessory (Separate part type) | Terminal block |
| Mounting support | Standard DIN rail |
| Electrical connection | 1 female connector SUB-D 50 Captive screw terminal |
| Category | US1PC2118155 |
| Number of ways | 8 contacts |
| Additional information | Each point is allocated 4 terminals |
| Product specific application | Provides plus, minus, shield and power supply interfaces Provides power supply interfaces for both field and loop power configurations Provides 8 connection 0.063 A fused point sets for the analog input modules |
| Accessory (separate part category) | Connection accessories |
| Accessory (separate part designation) | CableFast terminal block with fuses |
| Accessory (separate part destination) | Quantum I/O module |

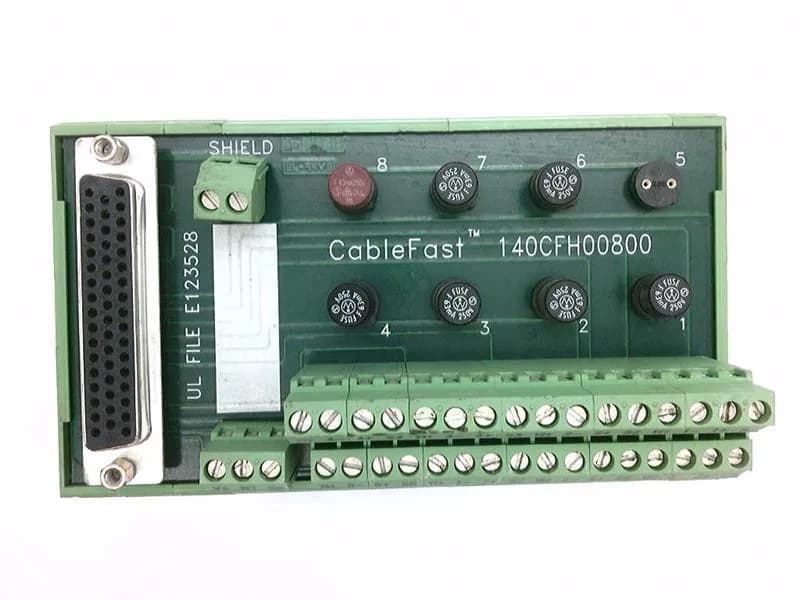

The 140CFH00800 is a CableFast terminal block with fuses from the Modicon Quantum automation platform, providing 8 fused point sets at 0.063 A for analog input modules such as the 140AVI03000 and 140ACI03000. It mounts on standard DIN rail and connects via a 50-pin SUB-D female captive screw terminal, with each point allocated 4 terminals for plus, minus, shield, and power supply interfaces.
An RFQ confirms current availability and lead time.
