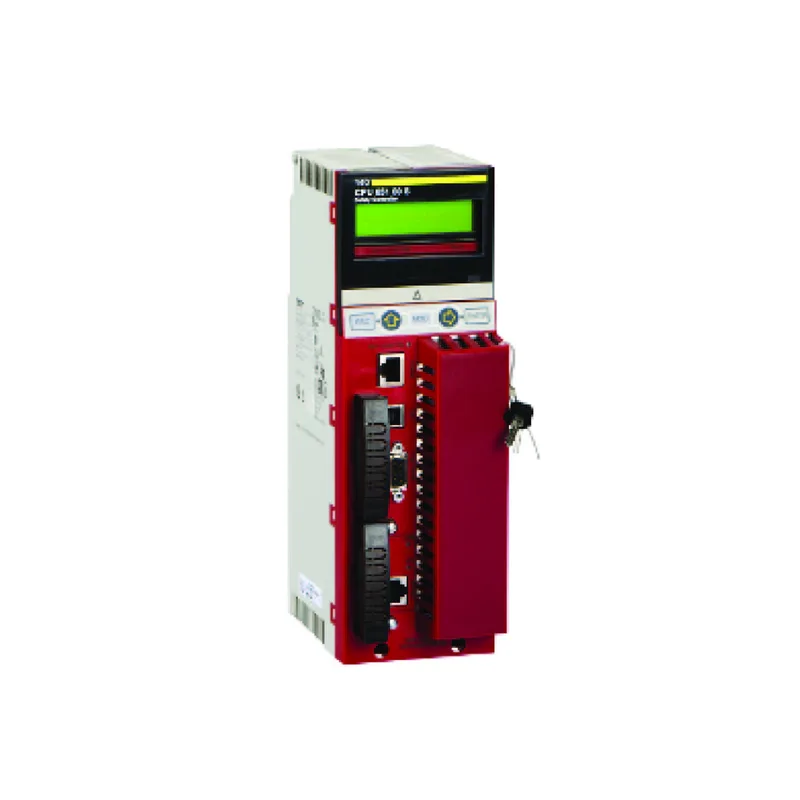

Schneider Electric 140CPU65160S
MPN140CPU65160S
Obsolete
Modicon Unity Processor
$13,402.31 – $38,047.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Backup type | Lithium battery 990XCP98000 |
| Display type | LCD 2 lines of 16 characters |
| Range of product | Modicon Quantum automation platform |
| Product or component type | Unity safety processor |
| Integrated connection type | 1 Ethernet TCP/IP local 1 Modbus local 1 Modbus Plus local 1 USB local |
| Supply voltage | 3 V DC lithium battery |
| Maximum supply current | 90 A 140 °F (60 °C) lithium battery 60 µA lithium battery |
| Bus current requirement | 2760 mA |
| Clock frequency | 266 MHz |
| Electrical connection | 1 female connector SUB-D 9 for connecting to the Modbus Plus network 1 female connector USB type B for connecting to PC 2 connectors RJ45 for connecting Modbus bus |
| Maximum number of connections | 1 Modbus Plus - local 1 Modbus RS232/485 Modbus/ASCII) 1 USB - local 6 Ethernet TCP/IP - local |
| Checks | Process control |
All specifications
| Parameter | Value |
|---|---|
| Marking | CE |
| Category | US1PC2118151 |
| Battery life | 10 year(s) |
| Number of racks | 1 - local |
| Number of slots | 2 4 6 16 10 3 |
| Switch function | Key switch memory port on/off |
| System overhead | 1.5 ms master task |
| Battery capacity | 1200 Ah |
| Local signalling | 1 LED (green) for Ethernet activity (COM) 1 LED (red) for Ethernet collision (ERR) |
| Memory description | Expandable 7168 kB - program with PCMCIA card Expandable 8 MB - file storage with PCMCIA card Internal RAM 1024 kB |
| Analogue i (O number) | Unlimited (26 slots max) - local - forbidden in Hot Standby application 1984 inputs,1984 outputs - remote |
| Discrete i (O number) | Unlimited (13 slots max) - local - forbidden in Hot Standby application 31744 inputs, 31744 outputs - remote |
| Software designation | Unity Pro XL safety |
| Application structure | 1 cyclic/periodic master task |
| Number of optional modules | 6 Ethernet 140NOE77111 |
| Number of remote i (O station) | 31 - 1 remote |
| Execution time per instruction | 0.09...0.12 µs on word 0.105...0.15 µs Boolean 0.96...1.02 µs on fixed-point arithmetic |
| Execution time for 1 kinstruction | 5.03 65 % Boolean and 35 % numerical 5.14 100 % Boolean |
