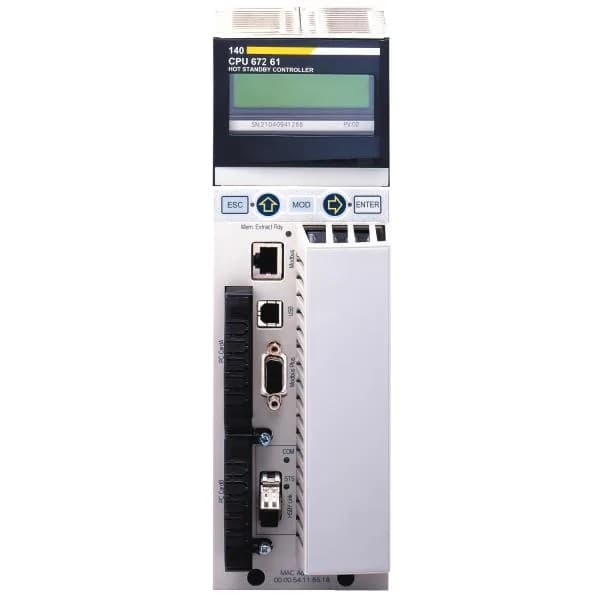

Schneider Electric 140CPU67261

Schneider 140CPU67261 Modicon Quantum Unity processor, discontinued

MPN140CPU67261
Obsolete

Schneider 140CPU67261 Plc Expansion Modules — now discontinued, supplied from remaining surplus and broker stock.

$11,127.00 – $20,606.22Ref. price · indicative, final on quote
Schneider Electric 140CPU67261 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

140CPU67261 key specifications
ParameterValue
Range of productModicon Quantum automation platform
Product or component typeUnity processor
Integrated connection type1 Modbus Plus 1 Modbus 1 USB 1 optic fibre Hot Standby
Bus current requirement2760 mA
Clock frequency266 MHz
Communication serviceEthernet router
Electrical connection1 female connector SUB-D 9 for connecting to the Modbus Plus network 1 connector RJ45 for connecting Modbus bus 1 connector LC (single mode fiber optic) for interconnecting primary and secondary PLCs up to 16 km
Maximum number of connections1 USB 2 AS-Interface - distributed 4 AS-Interface - remote 6 Ethernet TCP/IP - local 6 Modbus Plus - local 6 Profibus DP - local 1 Modbus RS232/485 Modbus/ASCII)
StandardsHazLoc
ChecksHot standby Process control
Category18150-QUANTUM CONTROLLERS,HSBY,COMM.
Number of racks2 - local

All specifications

140CPU67261 additional specifications
ParameterValue
Number of slots16 10 6 2 4
Switch functionKey switch memory port on/off
System overhead0.2 ms fast task 1 ms master task
Local signalling1 LED (green) for Ethernet activity (COM) 1 LED (red) for Ethernet collision
Memory descriptionExpandable 7168 kB - program with PCMCIA card Expandable 8 MB - file storage with PCMCIA card Internal RAM 3072 kB - 1536 kB for data
Analogue i (O number)500 inputs, 500 outputs - distributed - per network Modbus Plus Unlimited (31 drops of 28 slots max) - ethernet remote I/O 1984 inputs,1984 outputs - remote 0 - local - forbidden in Hot Standby application
Discrete i (O number)31744 inputs, 31744 outputs - remote 8000 inputs, 8000 outputs - distributed - per network Modbus Plus Unlimited (31 drops of 28 slots max) - ethernet remote I/O 0 - local - forbidden in Hot Standby application
Mode of transmissionSingle mode
Application structure1 periodic fast task - forbidden in Hot Standby application 128 I/O interrupt tasks - forbidden in Hot Standby application 128 interrupt tasks - forbidden in Hot Standby application 32 timer interrupt tasks - forbidden in Hot Standby application 4 auxiliary tasks - forbidden in Hot Standby application 1 cyclic/periodic master task -
Application specific i (O)Serial link Accurate time stamping High-speed interrupt inputs Counter
Number of optional modules6 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Number of remote i (O station)31 - 2 S908 remote I/O 31 - 2 ethernet Quantum remote I/O 31 - 2 ethernet X80 remote I/O
Number of instructions per10.28 Kinst/ms 100 % Boolean 10.07 Kinst/ms 65 % Boolean and 35 % numerical
Number of distributed i (O station)63 1 3 Modbus Plus

Product details

Overview

The 140CPU67261: It supports up to 31 remote I/O stations over S908 or Ethernet Quantum remote I/O, and integrates an Ethernet router with single-mode fiber optic interconnection for primary-secondary PLC links up to 16 km.

Schneider discontinued the 140CPU67261 on 2018-07-09.

Compared to the 140CPU67861, the 140CPU67261 has 3072 kB internal RAM versus 11264 kB, and expandable program memory of 7168 kB versus 8 MB file storage. Both support hot standby and process control, but the 140CPU67861 provides more headroom for larger programs and data logging. The 140CPU67261 is the right choice when the BOM matches the lower memory budget and the panel is already wired for the Quantum backplane.

MPN
140CPU67261
