Schneider Electric 140CRA21110

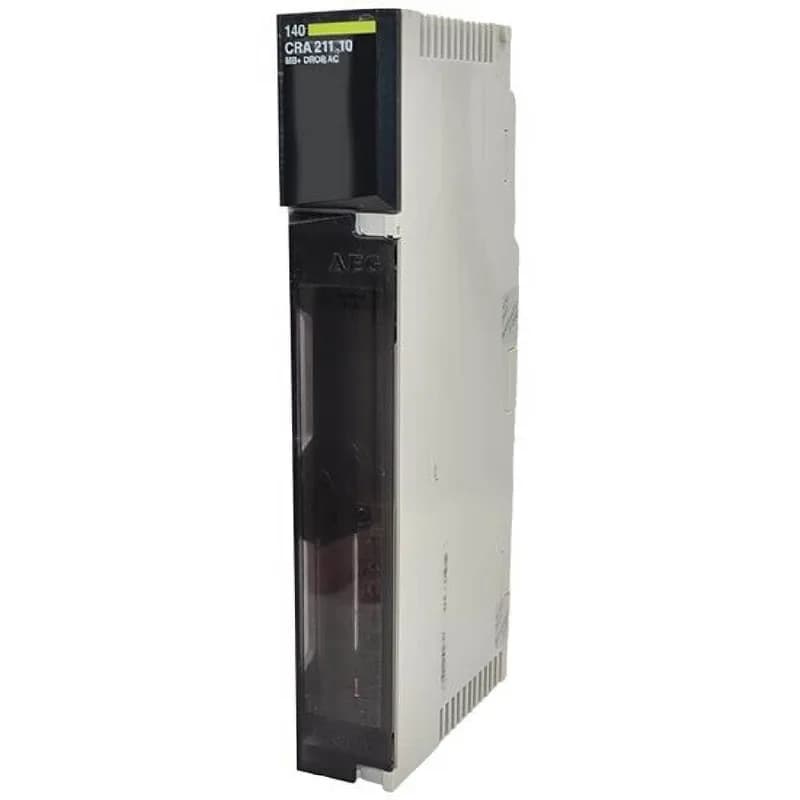

Schneider 140CRA21110 Modicon Quantum DIO Drop Interface, 30 I/32 O

MPN140CRA21110
Obsolete

Schneider 140CRA21110 Plc Expansion Modules — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$1,527.54 – $2,347.00Ref. price · indicative, final on quote
Schneider Electric 140CRA21110 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

140CRA21110 key specifications
ParameterValue
Range of productModicon Quantum automation platform
Product or component typeDIO drop interface
Output voltage5.1 V
Supply voltage limits85...276 V
Supply voltage115/230 V AC
Inrush current10 A 115 V 20 A 230 V
Minimum load current0 A
Maximum supply current0.2 A 115 V 0.4 A 230 V
Nominal output current3 A
Short-circuit protectionWith
Rated power in50 VA
Power dissipation in11 W

All specifications

140CRA21110 additional specifications
ParameterValue
Supply frequency47...63 Hz
Connections - terminalsTerminal block, 7 poles
Relative humidity95 % without condensation
Operating altitude<= 16404.2 ft (5000 m)
StandardsUL 508
CategoryUS1PC2118155
I (O words)30 I/32 O
Module formatStandard
Number of port1 single
Typical backplanes3 positions 2 positions 6 positions 16 positions 10 positions 4 positions
Diagnostics startupRAM address RAM Checksum
Diagnostics run timeRAM address RAM Checksum
Protective treatmentTC
Associated fuse rating1.5 A
Output overvoltage protectionWith
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80...2000 MHz IEC 801-3
Ambient air temperature for operation32...140 °F (0...60 °C)
Resistance to electrostatic discharge4 kV contact IEC 801-2 8 kV on air IEC 801-2

Product details

Overview

The 140CRA21110 is a Schneider Modicon Quantum DIO drop interface module, order code 140CRA21110, carrying 30 input and 32 output words over a single port. It operates on a 230 VAC supply and mounts on a Quantum backplane via a 7-pole terminal block, with a 3 A current output and 5.1 V voltage output.

This module acts as a remote DIO drop interface for the Modicon Quantum automation platform, mapping 30 input and 32 output words between the backplane and field devices. The 3 A current output on the 5.1 V rail powers the interface logic and field-side electronics; the 0.2 A switching current handles the internal relay or solid-state switching for discrete signals. Diagnostics cover RAM address and checksum at both startup and runtime, giving the controller visibility into module health without additional wiring. The 50 W power draw is the module's total consumption from the backplane — factor this into the Quantum power supply budget when populating a rack.

Applications

DIO drop interfaces like the 140CRA21110 are used in distributed I/O architectures within Modicon Quantum systems, commonly found in process plants, water treatment facilities, and material handling lines where remote racks consolidate field signals back to a central controller. The single-port design suits applications with a single remote drop per segment.

Within the Modicon Quantum family, the 140CRA21110 is a standard DIO drop interface — not a high-density or specialty module. It is specified by system integrators and plant engineers who need a straightforward remote I/O connection with UL 508, CSA, and DNV certifications, and who are already committed to the Quantum backplane architecture.

The 140CRA21110 carries certifications including UL 508, CSA Class 1 Division 2, DNV, C-tick, and GOST, and is listed with California Proposition 65 compliance. No official lifecycle status (active / phase-out / obsolete) is recorded in the available evidence; for current production status and last-time-buy windows, request a lifecycle check on the RFQ.
