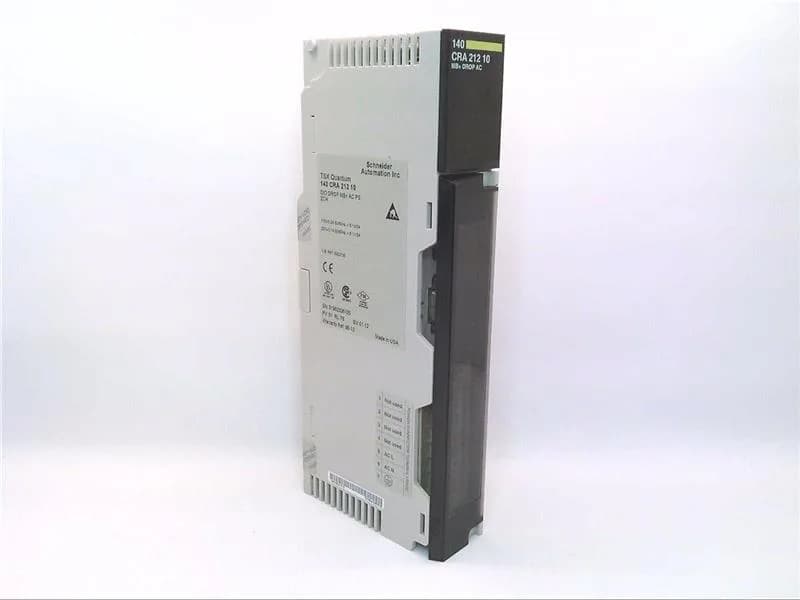

140CRA21210
MPN140CRA21210
Obsolete
DIO Drop Interface
$2,441.63 – $3,669.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon Quantum automation platform |
| Product or component type | DIO drop interface |
| Output voltage | 5.1 V |
| Supply voltage limits | 85...276 V |
| Supply voltage | 115/230 V AC |
| Inrush current | 10 A 115 V 20 A 230 V |
| Minimum load current | 0 A |
| Maximum supply current | 0.2 A 115 V 0.4 A 230 V |
| Nominal output current | 3 A |
| Short-circuit protection | With |
| Rated power in | 50 VA |
| Power dissipation in | 11 W |
All specifications
| Parameter | Value |
|---|---|
| Supply frequency | 47...63 Hz |
| Connections - terminals | Terminal block, 7 poles |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
| Standards | UL 508 |
| Category | US1PC2118155 |
| I (O words) | 30 I/32 O |
| Module format | Standard |
| Number of port | 1 single |
| Typical backplanes | 16 positions 6 positions 3 positions 2 positions 4 positions 10 positions |
| Diagnostics startup | RAM address Checksum RAM |
| Diagnostics run time | RAM address RAM Checksum |
| Protective treatment | TC |
| Associated fuse rating | 1.5 A |
| Output overvoltage protection | With |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80...2000 MHz IEC 801-3 |
| Ambient air temperature for operation | 32...140 °F (0...60 °C) |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
MPN
140CRA21210
