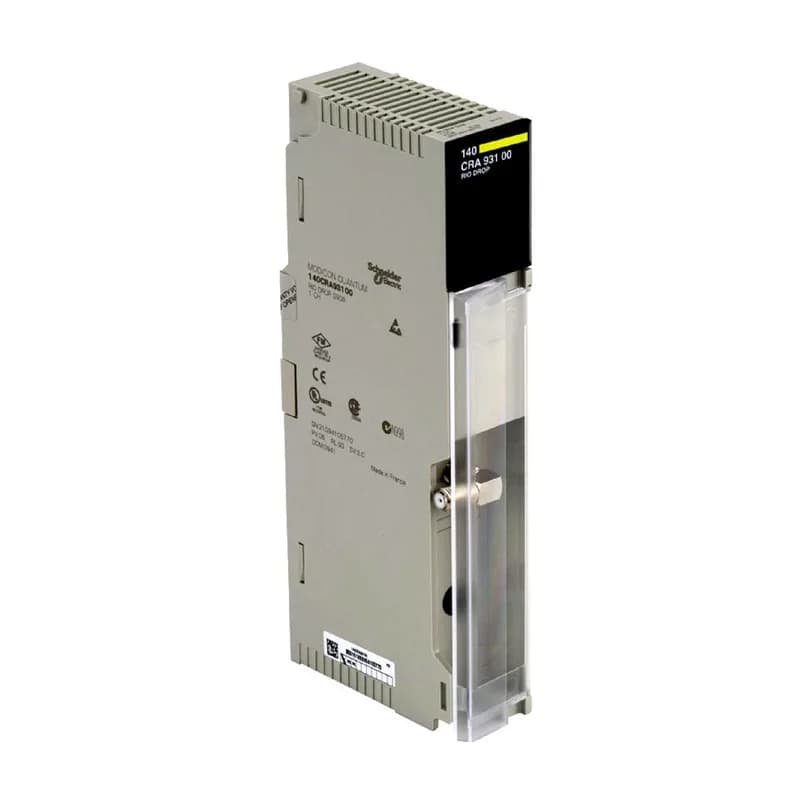

Schneider Electric Modicon Quantum 140CRA93100 RIO drop adapter, 1 female BNC connector, 1544 Mbit/s transmission rate, 500 V DC isolation.
| Parameter | Value |
|---|---|
| Type of cable | 75 Ohm coaxial |
| Range of product | Modicon Quantum automation platform |
| Product or component type | RIO drop adaptor module |
| Isolation voltage | 500 V DC coaxial center and ground |
| Bus current requirement | 600 mA 1 channel |
| Power dissipation in | 3 W 1 channel |
| Electrical connection | 1 female connector F, elbowed with single cable |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
| Category | US1PC2118155 |
| Dynamic range | 35 dB |
| Module format | Standard |
| Transmission rate | 1544 Mbit/s |
| Diagnostics startup | Executive checksum RAM address/data Power up and runtime |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80...1000 MHz IEC 801-3 |
| Ambient air temperature for operation | 32...140 °F (0...60 °C) |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
The 140CRA93100 is a Modicon Quantum RIO drop adapter, used to link remote I/O drops on an Ethernet/IP network via a 75 Ohm coaxial cable. Transmission rate is 1544 Mbit/s over a single BNC connection, with 500 V DC isolation between coaxial center and ground. Power dissipation runs 3 W per channel; bus current draw is 600 mA.
Discontinued on 12/30/22, now obsolete. Sourced to order against RFQ; no standard lead time.
The listed category is US1PC2118155.
The dynamic range is 35 dB.
