Overview

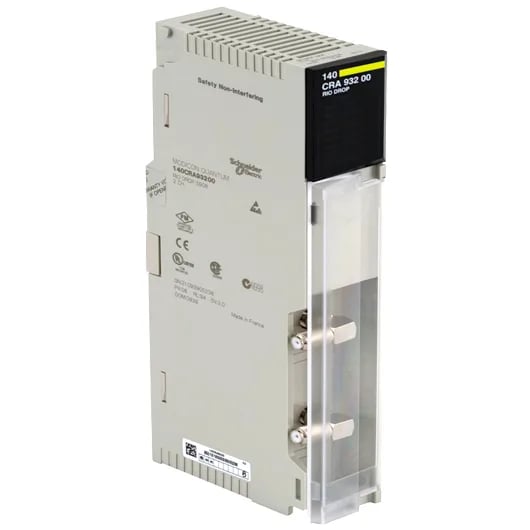

The 140CRA93200C is a Schneider Modicon Quantum RIO drop adapter module, part of the Modicon Quantum automation platform. It provides a remote I/O drop connection over Ethernet/IP via two female connectors with redundant cable, operating at a transmission rate of 1544 Mbit/s with a 35 dB dynamic range over 75 Ohm coaxial cable.
This RIO drop adapter bridges the Quantum backplane to a remote I/O network, converting parallel backplane signals to a serial 1544 Mbit/s stream over 75 Ohm coaxial cable. The 35 dB dynamic range defines the usable signal-to-noise margin on the link; a lower figure would indicate a noisier or longer cable run. The module draws 3.8 W from the backplane and switches 0.75 A on its auxiliary outputs. Two elbowed female connectors accept redundant coaxial cables for ring or star topologies; the conformal coating (Humiseal 1A33) protects against condensation and airborne contaminants in unsealed enclosures.
Applications
The 140CRA93200C is used in distributed control architectures where a Quantum local rack communicates with remote I/O drops over coaxial cable — typical in water treatment, material handling, and process skids where the I/O rack must be located away from the main controller cabinet. The redundant cable option supports fault-tolerant topologies for critical processes.
