Schneider Electric 140DAM59000

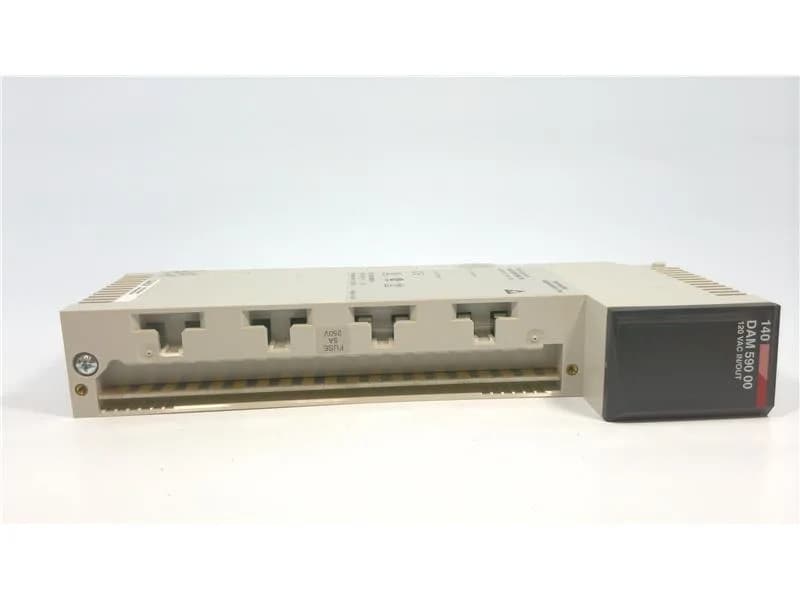

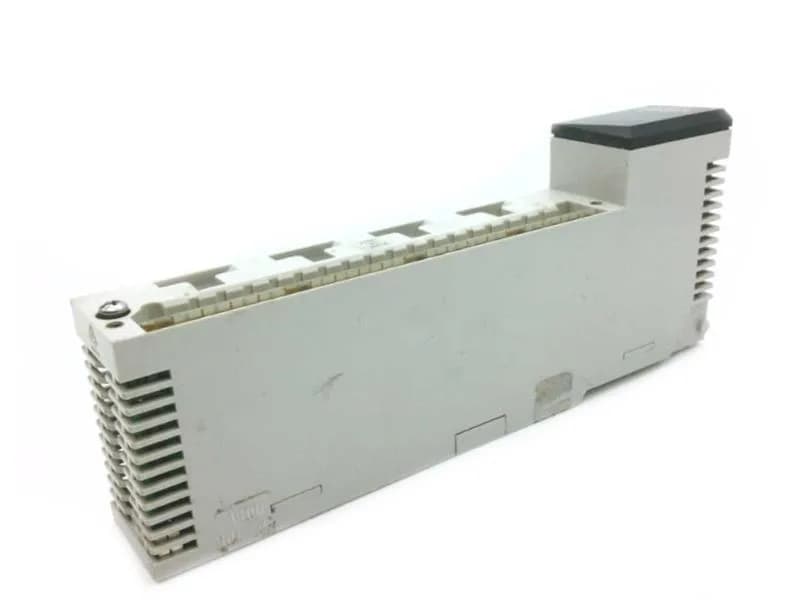

Schneider 140DAM59000 Modicon Quantum Mixed I/O Module, 24 I/O

MPN140DAM59000
Obsolete

Schneider 140DAM59000 Plc Expansion Modules — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$958.85 – $2,038.00Ref. price · indicative, final on quote
Schneider Electric 140DAM59000 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

140DAM59000 key specifications
ParameterValue
Protection typeOn output by RC filter Internal output protection by 5 A fuse per group
Range of productModicon Quantum automation platform
Discrete output typeSolid state
Product or component typeMixed discrete I/O module
Input voltage limits156 V during 10 s 200 V during one cycle 132 V typical
Maximum voltage drop<1.5 V
Output voltage limits156 V AC during 10 s 200 V AC during 1 cycle 85...132 V typical AC typical
Discrete input voltage115 V AC
Discrete output voltage115 V
Voltage state 0 guaranteed0...20 V
Voltage state 1 guaranteed79...132 V 60 Hz 85...132 V 50 Hz
Maximum load current<= 8 A per module

All specifications

140DAM59000 additional specifications
ParameterValue
Bus current requirement250 mA
Maximum leakage current2.1 mA 115 V AC input circuit 2 mA output circuit
Current state 0 guaranteed<= 0.5 mA
Current state 1 guaranteed<= 13.2 mA 60 Hz
Power dissipation5.5 W + (1.1 x total module load current)
External power requirement85...132 V AC for output circuit
Network frequency limits47...63 Hz
Response time4.9...0.75 ms at state 0 to state 1 7.3...12.3 ms at state 1 to state 0
Response time on output<= 0.5 ms at state 1 to state 0
Relative humidity95 % without condensation
Operating altitude<= 16404.2 ft (5000 m)
StandardsFM Class 1 Division 2 UL 508 CSA C22.2 No 142
DV (dt)400 V/µs
MarkingCE
CategoryUS1PC2118155
Minimum load5 mA
Input impedance14400 Ohm capacitive
Fault indicationLoss of field power on output Blown fuse on output
Local signalling1 LED (green) for bus communication is present (Active) 1 LED (red) for no voltage in output and input (F) 2 LEDs (green) for output is turned on 2 LEDs (red) for fault detected on the input point 2 LEDs (red) for fault detected on the output point
Discrete i (O number)24
Discrete input number16 2 groups of 8
Addressing requirement1 input word 0.5 output word
Discrete output number8 2 groups of 4
Absolute maximum output20 A 2 cycles per point 26 A 3 cycles per group 30 A 1 cycle per point 30 A 2 cycles per group 45 A 1 cycle per group 10 A 3 cycles per point
Isolation between group1000 Vrms for 1 minute
Isolation between channels and bus1780 Vrms for 1 minute
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80...1000 MHz IEC 801-3
Ambient air temperature for operation32...140 °F (0...60 °C)
Resistance to electrostatic discharge4 kV contact IEC 801-2 8 kV on air IEC 801-2

Product details

Overview

The 140DAM59000 is a Schneider Modicon Quantum mixed discrete I/O module, order code 140-DAM-590-00, combining 16 inputs and 8 solid-state outputs on a single chassis-mount unit. It operates on 115 V AC with a dv/dt rating of 400 V/µs and draws 5.5 W. The module carries CE marking, cUL certification, and FM Class 1 Division 2 approval, making it suitable for hazardous-location installations within a Modicon Quantum rack.

The 140DAM59000 occupies 1 input word and 0.5 output word of addressing space. Its 16 discrete inputs are arranged in 2 groups of 8, each group isolated from the other; the 8 solid-state outputs are similarly split into 2 groups of 4. Output protection is handled by an RC filter per point and a 5 A fuse per group. Fault indication covers loss of field power and blown fuse on the output side. Local signalling uses one green LED for bus communication active, one red LED for no voltage on output/input, two green LEDs per output on, two red LEDs per input fault, and two red LEDs per output fault. The solid-state outputs switch a minimum load of 5 mA and can handle absolute maximum surges of 20 A for 2 cycles per point or 30 A for 1 cycle per point. Response time is 4.9 ms.

Applications

As a Modicon Quantum mixed I/O module, the 140DAM59000 is used in medium-to-large process and discrete automation systems — water treatment, material handling, packaging lines, and chemical processing — where a single module must handle both input sensing and output switching at 115 V AC.

Within the Modicon Quantum range, the 140DAM59000 fills the niche of a mixed I/O module that combines discrete inputs and solid-state outputs on one card, reducing slot count and backplane current draw compared to separate input and output modules. It is specified by system integrators and panel builders who need a compact, field-proven solution for 115 V AC control circuits.

The 140DAM59000 carries CE marking, cUL certification, and FM Class 1 Division 2 approval, and is listed as compliant with California Proposition 65. It also meets UL 508 and CSA C22.2 No 142 standards. No official lifecycle status (active/obsolete) is stated in the available documentation; sourcing inquiries should confirm current availability and lead time via RFQ.
