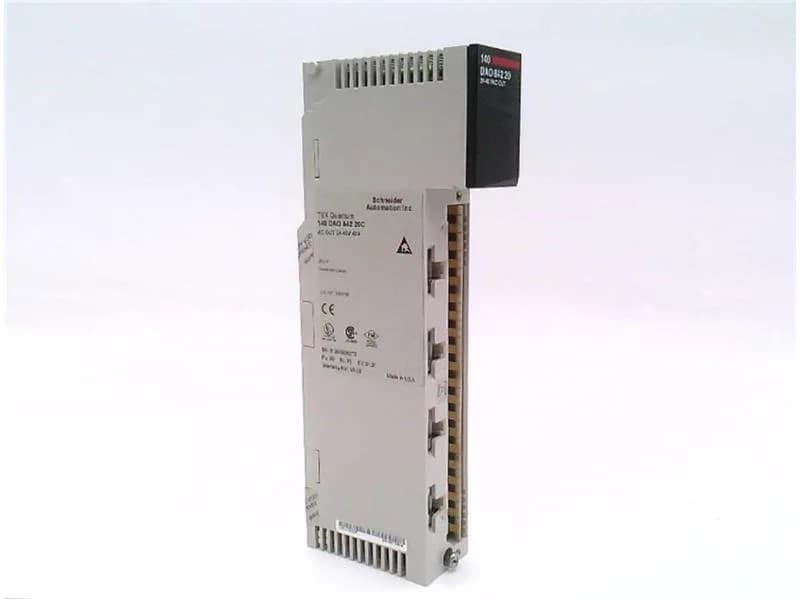

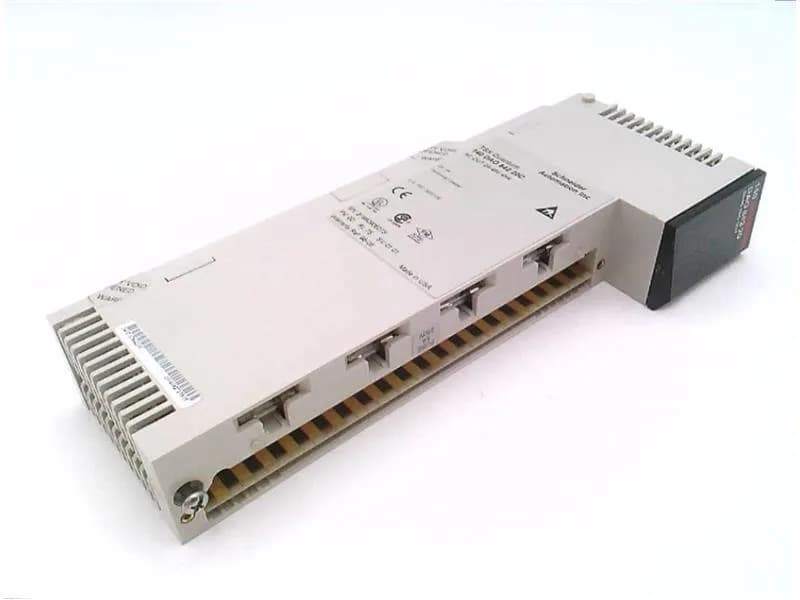

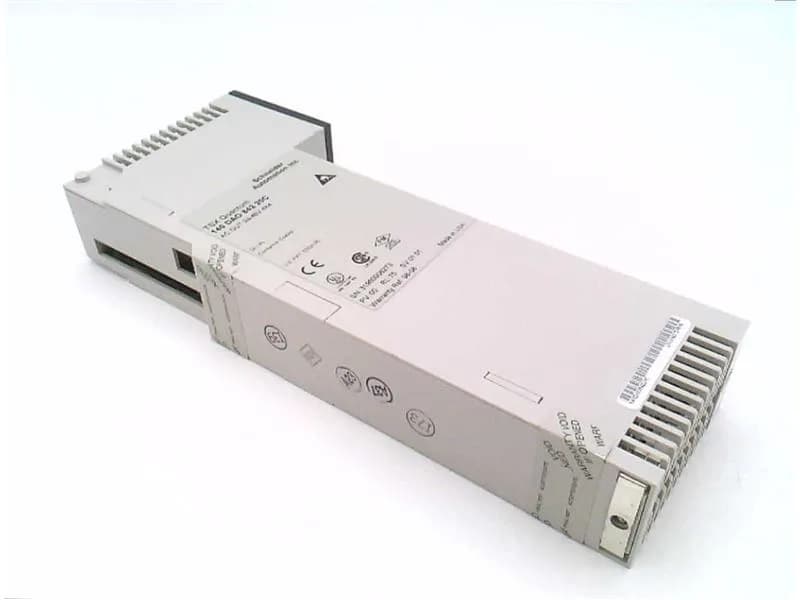

Schneider Electric 140DAO84220C

Schneider 140DAO84220C Quantum AC Output, 16 Pt, Obsolete, 4

MPN140DAO84220C
Obsolete

Schneider Electric Modicon Quantum 140DAO84220C AC discrete output module, 16 points, 20...56 V AC, dv/dt 400 V/ms, obsolete.

$1,084.95 – $2,615.00Ref. price · indicative, final on quote
Schneider Electric 140DAO84220C datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

140DAO84220C key specifications
ParameterValue
Protection typeInternal output protection by 5 A fuse Internal by RC filter
Range of productModicon Quantum automation platform
Product or component typeAC discrete output modules
Maximum voltage drop1.5 V
Discrete output voltage20...56 V AC
Surge current45 A during 1 cycle per group 25 A during 2 cycles per group 30 A during 3 cycles per group
Maximum load current16 A rms per module 4 A rms per group 4 A rms 20...56 V per output
Bus current requirement350 mA
Power dissipation1.85 + (1.1 V x total module load current)
Supply frequency47...63 Hz
Response time<= 0.5 ms at state 1 to state 0
Relative humidity95 % without condensation

All specifications

140DAO84220C additional specifications
ParameterValue
Operating altitude<= 16404.2 ft (5000 m)
StandardsUL 508 CSA C22.2 No 142
DV (dt)400 V/ms
MarkingCE
Category18155-QUANTUM I/O & POWER SUPPLIES
Module formatStandard
Fault indicationLoss of field power Blown fuse
Local signalling1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 16 LEDs (green) for input status
Group of channels4 groups of 4 channels
Protective treatmentConformal coating Humiseal 1A33
Addressing requirement1 output word
Discrete output number16
Absolute maximum output100 Vrms 1 cycle AC 63 Vrms 10 s AC 111 Vrms 1.3 s AC
Electromagnetic compatibilityElectrostatic discharge immunity test - test level: 4 kV (contact discharge) conforming to IEC 801-2 Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 801-2 Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 801-3
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation32...140 °F (0...60 °C)

Product details

The Schneider Electric 140DAO84220C is an obsolete 16-point AC discrete output module from the Modicon Quantum automation platform. It supplies 20...56 V AC to loads, with a per-module maximum of 16 A rms split across four groups of four channels, each group limited to 4 A rms. The dv/dt rating of 400 V/ms means it can turn off inductive AC loads without commutating on the high side during the zero-cross – check that this matches your load's snubber requirement. Internal protection includes a 5 A fuse per module and an RC filter across each channel. Bus current draw is 350 mA from the Quantum backplane, and the module's total power dissipation is 1.85 W plus 1.1 V times the load current. Response time from state 1 to state 0 is ≤0.5 ms, and maximum voltage drop per output is 1.5 V.

Official lifecycle status is obsolete. No direct replacement or successor has been published by Schneider Electric for this order code.
