Schneider Electric 140DAO85300

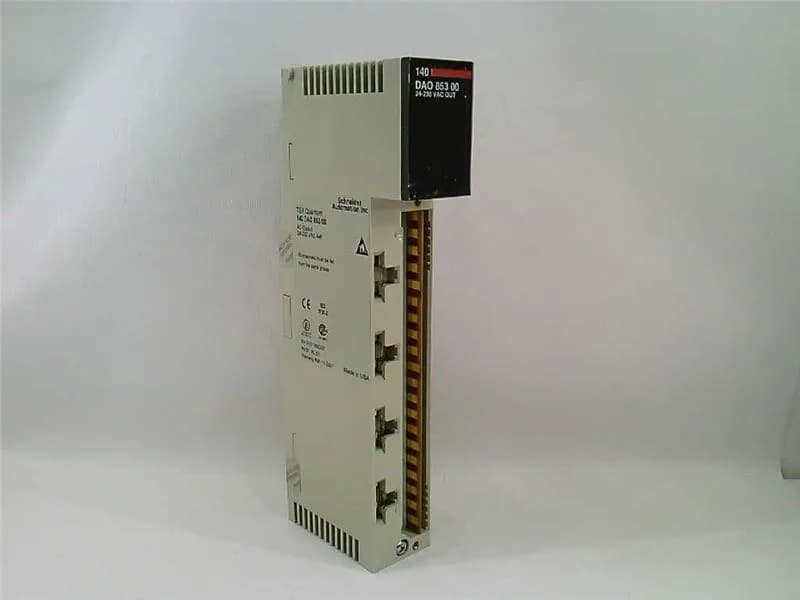

Schneider 140DAO85300 Modicon Quantum AC discrete output module, 32 outputs, dis

MPN140DAO85300
Obsolete

Schneider 140DAO85300 Plc Expansion Modules — now discontinued, supplied from remaining surplus and broker stock.

$1,765.55 – $2,637.00Ref. price · indicative, final on quote
Schneider Electric 140DAO85300 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

140DAO85300 key specifications
ParameterValue
Protection typeInternal output protection by 4 A fuse Internal by RC filter
Range of productModicon Quantum automation platform
Product or component typeAC discrete output modules
Maximum voltage drop1.5 V
Discrete output voltage20...253 V AC
Surge current2.5 A 1 ms
Maximum load current16 A rms per module 4 A rms per group 0.88 mA 230 V off state leakage per output 1 A rms 20...253 V per output
Bus current requirement320 mA
Power dissipation1.60 + (1.0 V x total module load current)
Supply frequency47...63 Hz
Response time<= 0.5 ms at state 1 to state 0
Relative humidity95 % without condensation

All specifications

140DAO85300 additional specifications
ParameterValue
Operating altitude<= 16404.2 ft (5000 m)
StandardsCSA C22.2 No 142 UL 508
DV (dt)400 V/ms
MarkingCE
CategoryUS1PC2118155
Module formatStandard
Local signalling1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 32 LEDs (green) for input status
Group of channels4 groups of 8 channels
Addressing requirement2 output words
Discrete output number32
Absolute maximum output300 Vrms 10 s AC 400 Vrms 1 cycle AC
Electromagnetic compatibilityElectrostatic discharge immunity test - test level: 4 kV (contact discharge) conforming to IEC 801-2 Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 801-2 Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 801-3
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation32...140 °F (0...60 °C)

Product details

Overview

The 140DAO85300 is a Modicon Quantum AC discrete output module switching 32 outputs in four isolated groups of eight, rated 1 A per output at 20...253 V AC with a dv/dt of 400 V/ms to handle inductive loads. It carries CE, CSA, UL 508, cUL, and FM Class 1 Division 2 certifications, suiting it for North American and hazardous-location panels.

Schneider discontinued the 140DAO85300 on 2022-12-07; no official successor is listed. Remaining units are available through surplus and broker channels. For a line-down or last-time-buy situation, an RFQ confirms current availability and lead time from our surplus network.

MPN
140DAO85300
