Schneider Electric 140DDI67300

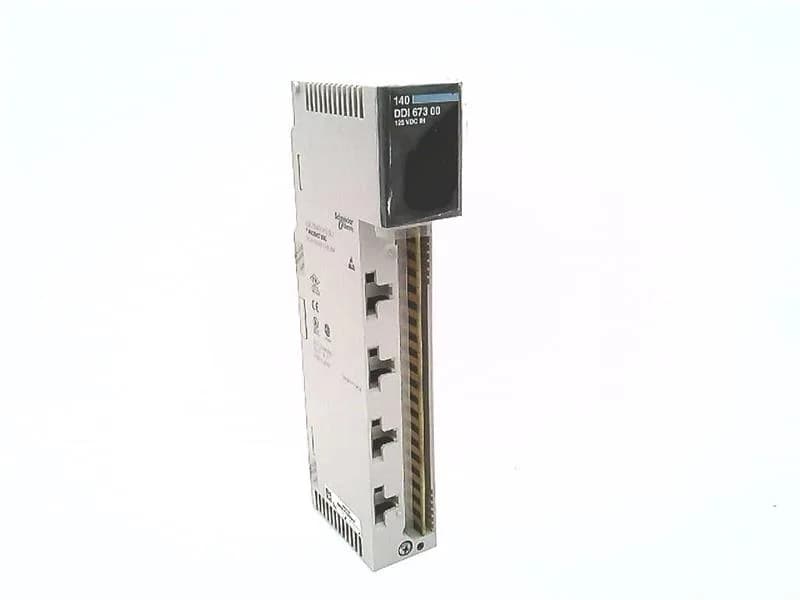

Schneider 140DDI67300 Modicon Quantum 24-Input Module, 125 V

MPN140DDI67300
Obsolete

Schneider Electric Modicon Quantum 140DDI67300, 24-point 125 VDC discrete input module, positive (sink) logic, UL 508 and CSA certified.

$2,614.19 – $2,944.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

140DDI67300 key specifications
ParameterValue
Range of productModicon Quantum automation platform
Product or component typeDc discrete input modules
Input voltage125 V 2.5 mA DC
Input voltage limits88...150 V
Absolute maximum voltage156.25 V including ripple
Bus current requirement200 mA
Power dissipation1 W + (0.62 x number of points on)
Response time0.7 ms from state 0 to state 1 0.7 ms from state 1 to state 0
Relative humidity95 % without condensation
Operating altitude<= 16404.2 ft (5000 m)
StandardsUL 508 CSA C22.2 No 142
MarkingCE

All specifications

140DDI67300 additional specifications
ParameterValue
CategoryUS1PC2118155
Logic inputPositive (sink)
Module formatStandard
Local signalling1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 24 LEDs (green) for input status
Group of channels3
Discrete input number24
Addressing requirement2 input words
Isolation between group700 Vrms DC for 1 minute
Isolation between group and bus2500 Vrms DC for 1 minute
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80...2000 MHz IEC 801-3
Ambient air temperature for operation32...140 °F (0...60 °C)
Resistance to electrostatic discharge4 kV contact IEC 801-2 8 kV on air IEC 801-2

Product details

The Schneider 140DDI67300 is a 24-channel discrete input module for the Modicon Quantum automation platform. It accepts 125 VDC sink inputs at 2.5 mA per point, with a response time of 0.7 ms in either direction. Each group of eight inputs is isolated from the others at 700 Vrms DC; the entire module is isolated from the backplane bus at 2500 Vrms DC.

Input characteristics

Input voltage range is 88…150 VDC; absolute maximum is 156.25 V including ripple. Module draws 200 mA, dissipates 1 W plus 0.62 W per active input, and addresses 2 input words.

Compliance & environment

Module carries CE marking and is certified to UL 508 and CSA C22.2 No 142. Operating temperature is 0…60 °C, storage -40…85 °C. It withstands 4 kV contact / 8 kV air electrostatic discharge per IEC 801-2 and 10 V/m radiated field per IEC 801-3. Rated for altitudes up to 5000 m and 95 % relative humidity without condensation.

Frequently asked questions

What is the input voltage rating?

125 VDC at 2.5 mA per point, with an operating range of 88…150 VDC and an absolute maximum of 156.25 V including ripple.

What certifications does the 140DDI67300 carry?

CE marking, UL 508, and CSA C22.2 No 142.

What is the isolation between input groups and between the module and backplane?

700 Vrms DC between groups, and 2500 Vrms DC between the group and the backplane bus.
