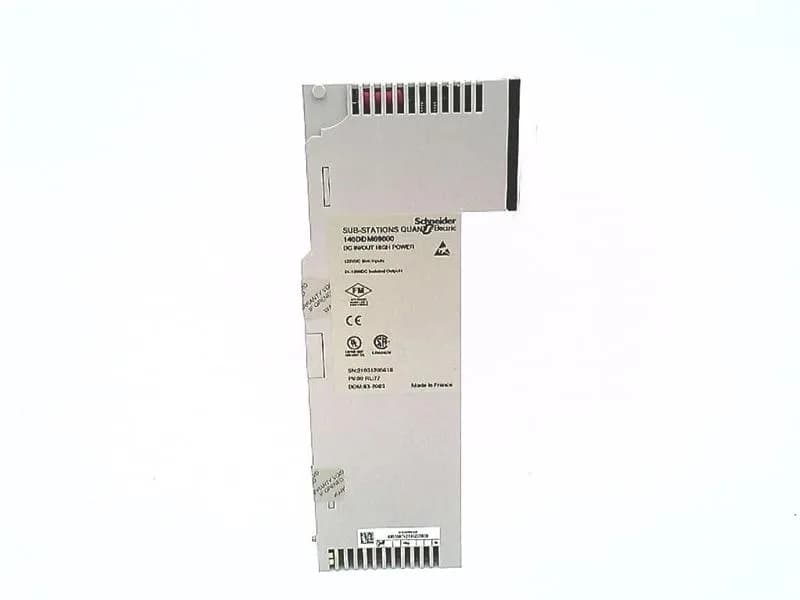

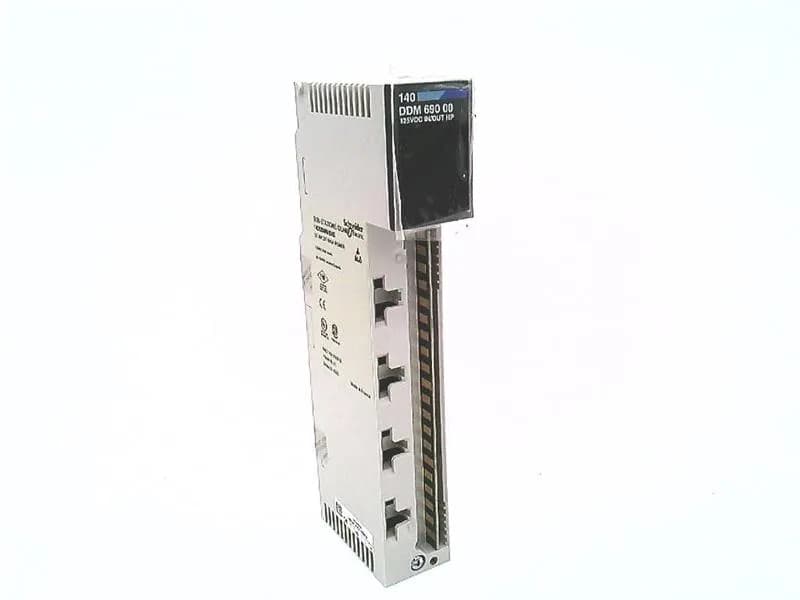

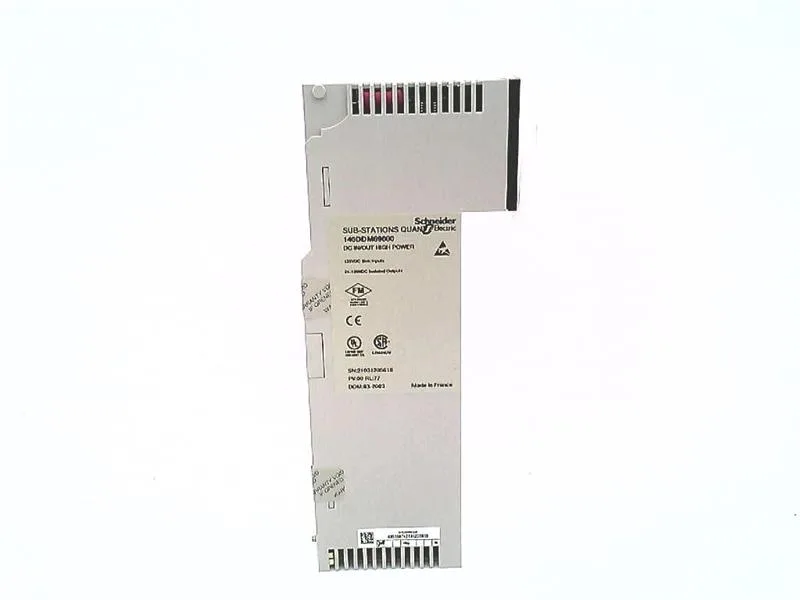

Schneider Electric 140DDM69000

Schneider 140DDM69000 Quantum Mixed I/O, 125 VDC, 4 A

MPN140DDM69000
Obsolete

Schneider Electric Modicon Quantum 140DDM69000 mixed discrete I/O module, 4 inputs 125 VDC, 4 outputs 24-125 V DC 4 A, 8 I/O points.

$3,085.45 – $3,232.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

140DDM69000 key specifications
ParameterValue
Protection typeInternal output protection by 5 A fuse per group On output by transient voltage suppression On input by resistor limited
Range of productModicon Quantum automation platform
Discrete output typeSolid state, isolated
Product or component typeMixed discrete I/O module
Input voltage limits156.2 V including ripple
Maximum voltage drop<0.75 V 4 A
Output voltage limits19.2...156.2 V DC typical
Discrete input voltage125 V DC
Discrete output voltage24...125 V
Voltage state 0 guaranteed0...36 V
Voltage state 1 guaranteed88...156.2 V
Maximum load current<= 4 A per point

All specifications

140DDM69000 additional specifications
ParameterValue
Bus current requirement350 mA
Maximum leakage current1.2 mA 150 V DC
Current state 0 guaranteed= 2 mA
Power dissipation0.4 W + (1 x input point on) + (0.75 total output load current)
Network frequency limits47...63 Hz
Response time0.5 or 1.5 ms depending on the filter at state 0 to state 1 0.5 or 1.5 ms depending on the filter at state 1 to state 0
Relative humidity95 % without condensation
Operating altitude<= 16404.2 ft (5000 m)
StandardsUL 508 CSA C22.2 No 142 FM Class 1 Division 2
MarkingCE
CategoryUS1PC2118155
Fault indicationOvercurrent on output
Local signalling1 LED (green) for bus communication is present (Active) 1 LED (red) for no voltage in output and input (F) 2 LEDs (red) for fault detected on the output point 4 LEDs (green) for output is turned on 4 LEDs (red) for fault detected on the input point
Discrete i (O number)8
Discrete input logicSink
Discrete input number4 1 group of 8
Discrete output logicSource or sink
Addressing requirement1 input word 1 output word
Associated fuse rating5 A
Discrete output number4 1 group of 4
Absolute maximum output30 A during 500 ms per point
Maximum load capacitance0.1 µF 150 V DC 0.6 µF 24 V DC
Isolation between channels1780 Vrms for 1 minute
Isolation between group and bus2500 Vrms for 1 minute
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80...1000 MHz IEC 801-3
Ambient air temperature for operation32...140 °F (0...60 °C)
Resistance to electrostatic discharge4 kV contact IEC 801-2 8 kV on air IEC 801-2

Product details

Mixed I/O on Quantum

The 140DDM69000 is a Modicon Quantum mixed discrete I/O module that is now end-of-life, meaning sourcing goes through surplus or broker channels for urgent BOM fills. It packs 4 sink inputs rated at 125 VDC and 4 source-or-sink solid-state outputs handling 24 to 125 VDC at up to 4 A per point. Response time is 0.5 or 1.5 ms depending on the noise filter setting. Protection is built in: each output group has a 5 A fuse, transient voltage suppression on outputs, and resistor-limited inputs. Channel-to-channel isolation is rated 1780 Vrms for 1 minute, and group-to-bus isolation is 2500 Vrms. Addressing takes one input word and one output word, and the module draws 350 mA from the bus.

Sourcing an End-of-Life Module

This module is end-of-life and no longer in production. Sourcing is via surplus or broker channels for new-in-box units from cancelled orders.

Field Wiring and Commissioning

Input wiring is sink logic. Outputs can be wired as source or sink. Watch the maximum leakage current: 1.2 mA at 150 VDC and load capacitance limits of 0.1 µF at 150 VDC or 0.6 µF at 24 VDC. The module operates up to 5000 m altitude and 95% relative humidity without condensation. Bus current budget is 350 mA; power dissipation is 0.4 W plus input and output loads.

Frequently asked questions

What are the key electrical ratings?

4 sink inputs at 125 VDC, 4 source/sink outputs at 24-125 VDC up to 4 A per point. Response time is 0.5 or 1.5 ms depending on the filter setting. Isolation: 1780 Vrms channel-to-channel, 2500 Vrms group-to-bus.

How do I source this end-of-life module?

Via an RFQ. We source from surplus and broker channels; condition varies but typically new-in-box from cancelled orders. Submit a purchase order and we'll locate the best available units.
