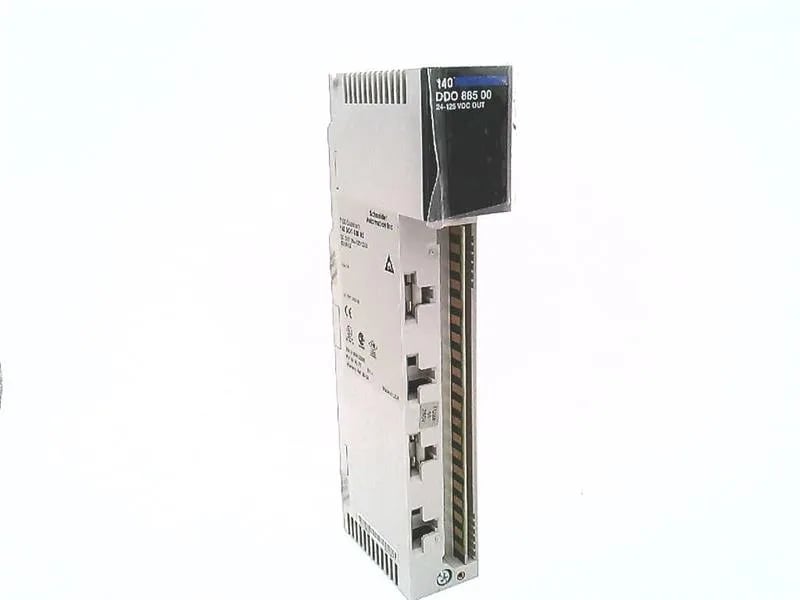

The 140DDO88500 is a 12-channel DC discrete output module for the Modicon Quantum automation platform. It uses negative logic (sink) and switches 24 to 125 V DC loads, with a maximum of 0.75 A per point at 40 °C. Each channel includes internal protection via a 4 A fuse and a green LED for bus communication status. Overcurrent faults are indicated by a red LED. The module carries CE marking and is certified to UL 508 and CSA C22.2 No 142, covering North American and European installation requirements.

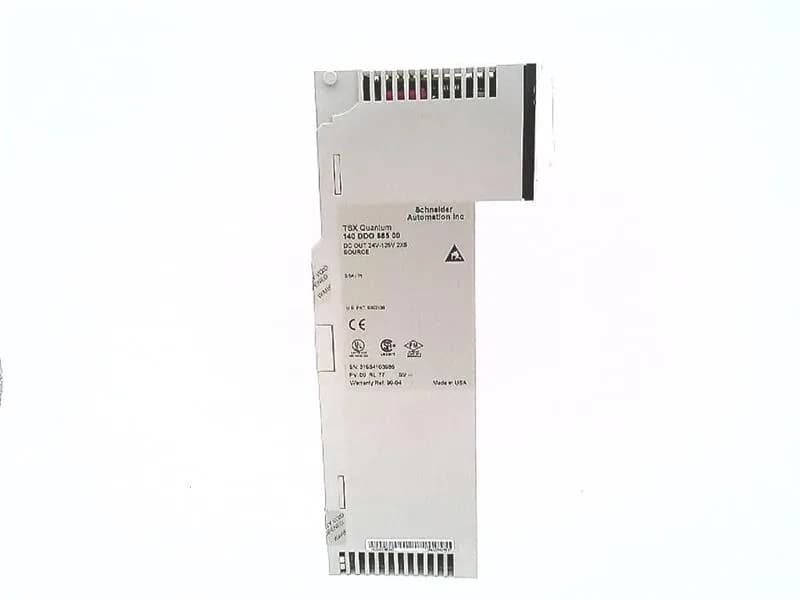

140DDO88500 Modicon Quantum DC Output Module, 12-Ch Sink, Ob
MPN140DDO88500
Obsolete
Schneider Modicon Quantum 140DDO88500, 12-point DC discrete output module, sink logic, 24-125 VDC, 0.75 A per point, obsolete.
$1,411.14 – $2,744.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Protection type | Internal output protection by 4 A fuse |
| Range of product | Modicon Quantum automation platform |
| Product or component type | Dc discrete output module |
| Output voltage limits | 19.2...156.2 V |
| Discrete output voltage | 24...125 V DC |
| Surge current | 4 A 1 ms |
| Maximum load current | <= 0.75 A 32...104 °F (0...40 °C) each point |
| Bus current requirement | 375 mA 6 outputs at state 1 650 mA 12 outputs at state 1 |
| Short-circuit protection | With |
| Power dissipation | 1 W + (0.77 x all points on) |
| Switching frequency | <= 50 Hz |
| Response time | 1 ms at state 0 to state 1 1 ms at state 1 to state 0 |
All specifications
| Parameter | Value |
|---|---|
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
| Standards | UL 508 CSA C22.2 No 142 |
| Marking | CE |
| Category | US1PC2118155 |
| Module format | Standard |
| Load inductance | No limit (protected by diode) |
| Fault indication | Overcurrent |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 16 LEDs (green) for input status |
| Group of channels | 2 groups of 6 |
| Discrete output logic | Negative logic (sink) |
| Maximum tungsten load | 41 W 115 V 46 W 130 V 8 W 24 V |
| Addressing requirement | 1 input word 1 output word |
| Discrete output number | 12 |
| Isolation between group | 1200 Vrms DC for 1 minute |
| Output overvoltage protection | By varistor per group |
| Isolation between channels and bus | 2500 Vrms DC for 1 minute |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80...2000 MHz IEC 801-3 |
| Ambient air temperature for operation | 32...140 °F (0...60 °C) |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
Product details
Frequently asked questions
Does the 140DDO88500 have CE marking?
Yes, it is CE marked.
What customs category is the 140DDO88500 classified under?
It is classified under category US1PC2118155.
What safety standards does the 140DDO88500 meet?
It meets UL 508 and CSA C22.2 No 142.
How can I source the 140DDO88500 if it is obsolete?
We can source it to order from available surplus or last-time-buy stock. Submit an RFQ for current availability and lead time.
