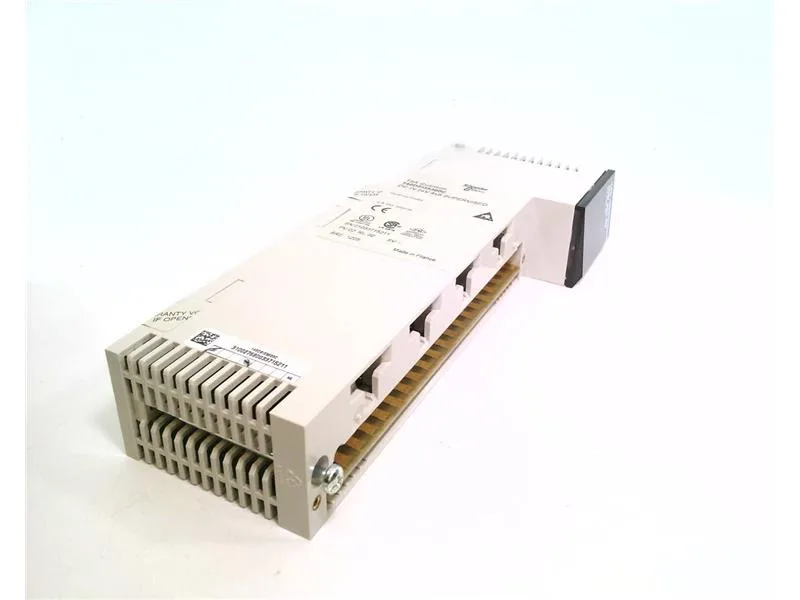

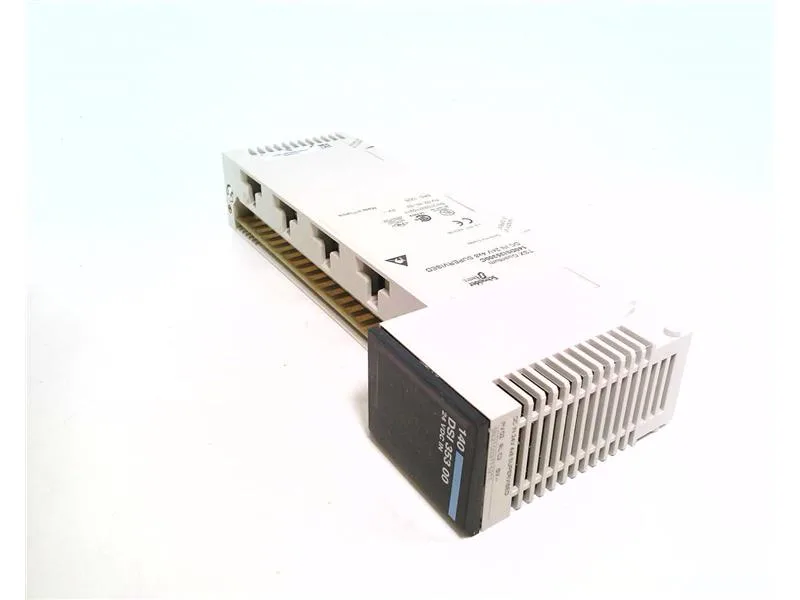

The 140DSI35300C: A standout feature is broken wire detection, which continuously monitors each input channel for an open circuit. When triggered, the red 'F' LED lights and the module signals the fault over the backplane, reducing troubleshooting time on large I/O racks. The module is conformally coated (Humiseal 1A33) for moisture and contaminant resistance, and operates from 0 to 60°C with 95% non-condensing humidity. It draws 250 mA from the Quantum backplane and requires four input words of addressing. Electrical isolation is robust: 1780 Vrms for 1 minute between the input group and the backplane, and 500 Vrms between input groups — important for preventing ground loops in long field-wire runs.
The 140DSI35300C carries CE marking and is UL 508 and CSA C22.2 No. 142 listed. The documentation set includes those certifications; no separate RoHS or REACH declarations are on file in the standard record, but the unit was produced under Schneider's standard environmental compliance program.
