Schneider 140NRP95400 Plc Expansion Modules — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Optic fiber type | Multi mode |
| Range of product | Modicon Quantum automation platform |
| Product or component type | Fibre optic repeater |
| Inrush current | 1 A at 5 V DC |
| Bus current requirement | 700 mA |
| Power dissipation in | 5 W |
| Relative humidity | 0...95 % |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Depth | 4.09 in (103.85 mm) |
| Width | 1.59 in (40.34 mm) |
| Height | 9.8 in (250 mm) |
| Material | PC (polycarbonate) |
| Parameter | Value |
|---|---|
| Standards | CSA C22.2 No 142 UL 508 FM Class 1 Division 2 |
| Marking | CE |
| Category | US1PC2118155 |
| AWG gauge | AWG 14...AWG 1 |
| Wavelength | 0.000032284 in (820 nm) |
| Attenuation | -20...-13 dB 50/125 µm) -16...-10 dB 62.5/125 µm) -10.5...-4 dB 100/140 µm) |
| Dynamic range | 20 dB |
| Number of port | 2 fiber optic ST 1 coaxial connector |
| Rise (fall time) | 20 ns |
| Detected silence | -36 dBm |
| Local signalling | 1 LED green RDY module status 1 LED red ERR internal fault, module failure 1 LED green coaxial communication status 2 LEDs green optical communication status 1 LED red FAULT error 1 LED red activity detected |
| Receiver sensitivity | - 30 dBm |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | 32...140 °F (0...60 °C) |
| Optic distance between 2 transceivers | 6561.7 ft (2000 m) 50/125 µm)3.5 dBm 9842.5 ft (3000 m) 62.5/125 µm)3.5 dBm 9842.5 ft (3000 m) 100/140 µm)5 dBm |

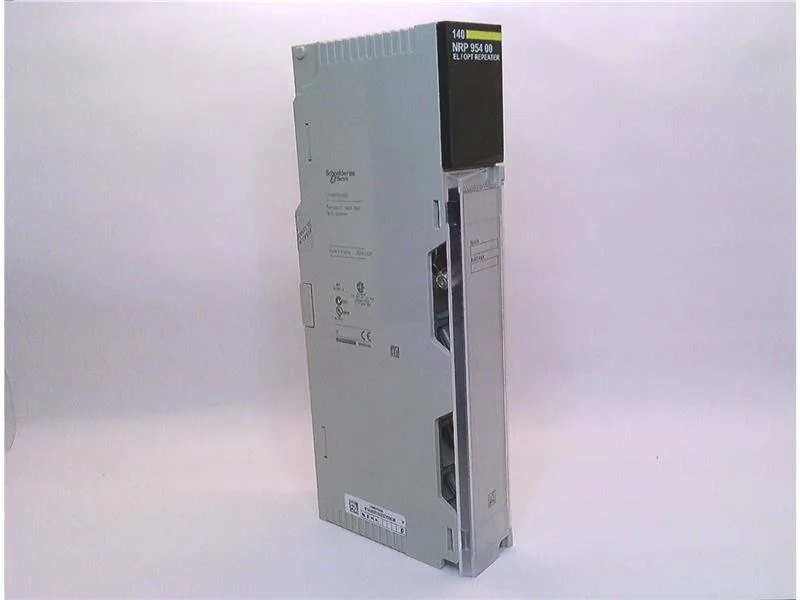

The 140NRP95400 is a fibre optic repeater on the Modicon Quantum automation platform, extending remote I/O S908 links via two ST fibre ports and one coaxial connector. It supports multi-mode fibre runs up to 2000 m (50/125 µm) and carries CE, CSA C22.2 No 142, UL 508, and FM Class 1 Division 2 approvals.
