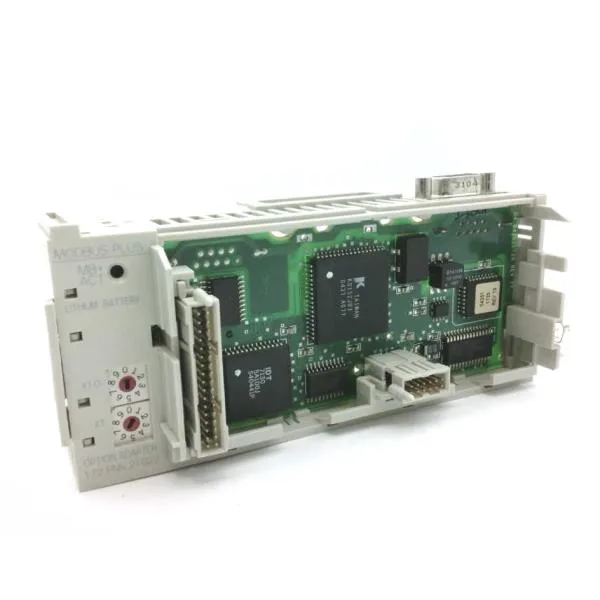

Schneider Electric 172PNN21022
MPN172PNN21022
Obsolete
MB+ OPTION ADAPTER|MB+ OPTION ADAPTERSQD 172PNN21022 MB+ OPTION ADAPTER
$1,729.98Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Battery type | Lithium < 30 day after the battery low indication 104 °F (40 °C) |
| Range of product | Modicon Momentum automation platform |
| Communication port type | Single |
| Product or component type | Modbus Plus option adaptor |
| Input voltage tolerance | +/- 5 % |
| Supply voltage | 5 V DC |
| Current consumption | 200 mA 24 V DC |
| IP degree of protection | IP20 conforming to IEC 529 |
| Communication port protocol | Modbus Plus |
| Electrical connection | 1 connector D-shell 9 pins for Modbus Plus connection |
| Shock resistance | +/- 15 gn 11 ms half sine wave acceleration |
| Relative humidity | 5...95 % without condensation |
All specifications
| Parameter | Value |
|---|---|
| Operating altitude | <= 6561.68 ft (2000 m) |
| Vibration resistance | 1 gn 57...150 Hz) |
| Amplitude of sinusoidal vibration | 0.075 mm 10...57 Hz |
| Depth | 2.36 in (60.06 mm) |
| Width | 5.6 in (143.1 mm) |
| Height | 1.0 in (25 mm) |
| Material | Lexan |
| Standards | IEC 529 |
| Supply | Via I/O base |
| Marking | CE |
| Category | 18206-MOMENTUM PROCESSORS,I/O BASES,CONN. |
| Clock drift | +/- 13 s/day accuracy |
| Battery life | 5 year(s) |
| Battery size | 2/3 AA |
| Module format | Standard |
| Number of port | 1 |
| Local signalling | 1 LED for communication |
| Dielectric strength | 500 V DC |
| Protective treatment | TC |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80...1000 MHz IEC 801-3 |
| Ambient air temperature for operation | 32...140 °F (0...60 °C) |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
MPN
172PNN21022
