Schneider Electric 26357
MPN26357
Obsolete

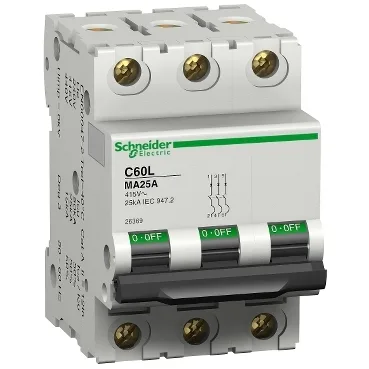

C60 - circuit breaker - C60L - 3P - 1.6A - L curve
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Miniature circuit-breaker |
| Product name | C60 |
| Range of product | C60 |
| Product range | Multi9 |
| Device application | Motor |
| Parameter | Value |
|---|---|
| Network type (AC/DC) | AC |
| Rated current [In] | 1.6 A at 40 °C |
| Rated operational voltage [Ue] | 440 V AC 50/60 Hz 230...240 V AC 50/60 Hz 400...415 V AC 50/60 Hz |
| Network frequency | 50/60 Hz |
| Poles description | 3P |
| Magnetic tripping limit | 12 x In |
| Parameter | Value |
|---|---|
| Breaking capacity | 6 kA Icu at 415 V AC 50/60 Hz per pole conforming to EN/IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 50 kA Icu at 230...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 25 kA Icu at 400...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Trip unit technology | Thermal-magnetic |
| Earth-leakage protection | Separate block |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Mechanical durability | 20000 cycles |
| Local signalling | ON/OFF indication |
| Contact position indicator | Yes |
| Parameter | Value |
|---|---|
| Connections / terminals | Tunnel type terminals16 mm² flexible Tunnel type terminals25 mm² rigid |
| Device short name | C60L |
| Control type | Toggle |
| Mounting mode | Clip-on |
| Mounting support | 35 mm symmetrical DIN rail |
| Usable 9 mm pitches | 6 |
| Width | 54 mm |
| Height | 81 mm |
| Depth | 73 mm |
| Parameter | Value |
|---|---|
| Operating ambient air temperature | -25...60 °C |
| Storage ambient air temperature | -40...70 °C |
| Parameter | Value |
|---|---|
| Curve code | L |
| Number of protected poles | 3 |
