Schneider Electric 31369

MPN31369

Obsolete

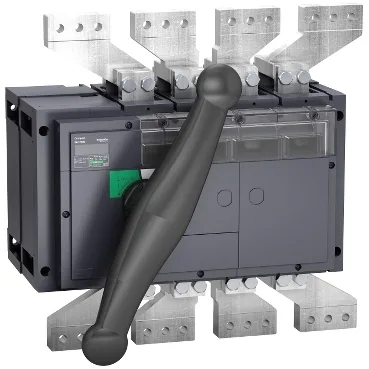

switch disconnector, Compact INV2500, visible break, 2500A, standard version with black rotary handle, 4 poles

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

31369 — Ratings
Parameter	Value
Poles configuration	4P
Rated operational voltage (Ue)	690 V AC 50/60 Hz 250 V DC
Rated insulation voltage (Ui)	1000 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)	12 kV
Network type (AC/DC)	AC DC
Network frequency	50/60 Hz

31369 — Protection
Parameter	Value
Suitability for isolation	Yes
Electrical durability (cycles)	AC-21B: 100 cycles 220/240 V AC 50/60 Hz AC-21B: 100 cycles 380/415 V AC 50/60 Hz AC-21B: 100 cycles 440/480 V AC 50/60 Hz AC-21B: 100 cycles 480 V AC 50/60 Hz conforming to NEMA AC-21B: 100 cycles 500/525 V AC 50/60 Hz AC-21B: 100 cycles 660/690 V AC 50/60 Hz AC-22B: 100 cycles 220/240 V AC 50/60 Hz AC-22B: 100 cycles 380/415 V AC 50/60 Hz AC-22B: 100 cycles 440/480 V AC 50/60 Hz AC-22B: 100 cycles 480 V AC 50/60 Hz conforming to NEMA AC-22B: 100 cycles 500/525 V AC 50/60 Hz AC-22B: 100 cycles 660/690 V AC 50/60 Hz DC-21B: 100 cycles 125 V DC 2 poles in series DC-22B: 100 cycles 125 V DC 2 poles in series DC-21B: 100 cycles 250 V DC 4 poles in series DC-22B: 100 cycles 250 V DC 4 poles in series
Mechanical durability (cycles)	3000 cycles
