Schneider Electric 33896
MPN33896
Active

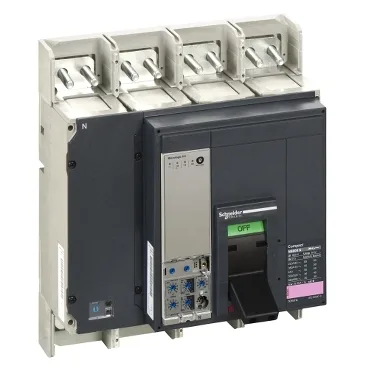

circuit breaker Compact NS800N - Micrologic 6.0 - 800 A - 4 poles 4t
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Trip unit technology | Electronic |
| Local signalling / indication | 4 LEDs (red) for fault indication 1 LED (yellow) for overload |
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | 690 V AC 50/60 Hz |
| Number of poles | 4P |
| Neutral pole position | Left |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Rated insulation voltage (Ui) | 800 V AC 50/60 Hz conforming to IEC 60947-2 |
| Rated impulse withstand voltage (Uimp) | 8 kV conforming to IEC 60947-2 |
| Electrical durability | 2000 cycles at 690 V In 4000 cycles at 690 V In/2 5000 cycles at 440 V In 6000 cycles at 440 V In/2 |
| Mechanical durability (operating cycles) | 10000 cycles |
| Parameter | Value |
|---|---|
| Product name | ComPact NS |
| Product / component type | Circuit breaker |
| Product range / family | ComPact |
| Device short name | Compact NS800N |
| Parameter | Value |
|---|---|
| Mounting support | Backplate |
| Control type | Rotary handle Toggle |
| Parameter | Value |
|---|---|
| Operating ambient temperature | -25...70 °C |
| Storage ambient temperature | -50...85 °C |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60947 |
| Relative humidity | 0...95 % |
| Operating altitude | 0...2000 m without derating 2000 m...5000 m with derating |
| Parameter | Value |
|---|---|
| Standards | EN/IEC 60947-2 |
MPN
33896
