Schneider Electric 47161
MPN47161
Active

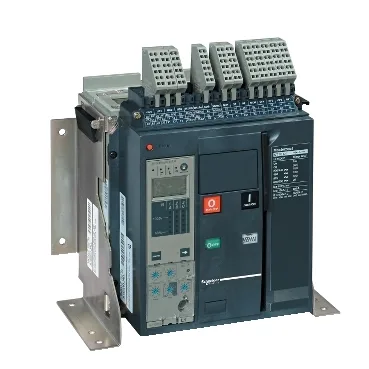

Switch disconnector, MasterPact NT08HA, 800A, 75kA/440VAC 50/60Hz (Icm), 3 poles, fixed
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product type | Switch disconnector |
| Product name | MasterPact NT |
| Range | MasterPacT |
| Application | Protection |
Electrical ratings
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | 690 V AC 50/60 Hz conforming to IEC 60947-3 |
| Rated operational current (Ie) | 800 A AC 50/60 Hz 690 V |
| Poles | 3P |
| Rated insulation voltage (Ui) | 1000 V AC 50/60 Hz conforming to IEC 60947-3 |
| Rated impulse withstand voltage (Uimp) | 12 kV conforming to IEC 60947-3 |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitable for isolation | Yes conforming to IEC 60947-3 |
Breaking & withstand capacity
| Parameter | Value |
|---|---|
| Rated short-time withstand current (Icw) | 36 kA during 0.5 s conforming to IEC 60947-3 36 kA during 1 s conforming to IEC 60947-3 20 kA during 3 s conforming to IEC 60947-3 |
| Rated short-circuit making capacity (Icm) | 75 kA 220...690 V AC at 50/60 Hz |
| Breaking capacity code | HA |
Performance
| Parameter | Value |
|---|---|
| Mechanical durability (cycles) | 12500 cycles without maintenance conforming to IEC 60947-3 |
| Electrical durability (cycles) | AC-23A: 3000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-3 AC-23A: 6000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-3 AC-3: 6000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-3 |
Mechanical & connection
| Parameter | Value |
|---|---|
| Control type | Push-button |
| Mounting mode | Fixed |
| Contact position indicator | Yes |
| Width | 276 mm |
| Height | 301 mm |
| Depth | 196 mm |
| Connection pitch | 70 mm |
| Upside connection | Front |
| Downside connection | Front |
Environmental
| Parameter | Value |
|---|---|
| Operating ambient temperature | -5...70 °C |
| Storage ambient temperature | -40...85 °C |
| Pollution degree | 3 conforming to IEC 60664-1 |
Approvals
| Parameter | Value |
|---|---|
| Standards | IEC 60947-3 |
MPN
47161
