Schneider Electric 48017
MPN48017
Active

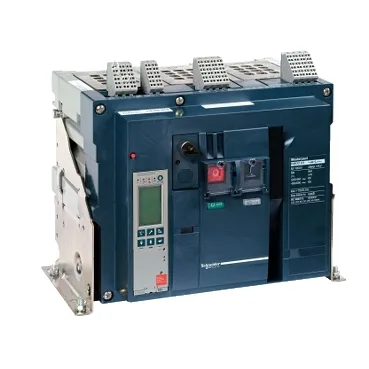

Circuit breaker frame, MasterPact NW10H2a, 1000A, 85kA/440VAC 50/60Hz (Icu), 3 poles, fixed, without control unit
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product type | Basic frame |
| Product name | MasterPact NW |
| Range | MasterPacT |
| Circuit breaker name | MasterPact NW10 |
| Control unit | Without control unit |
Electrical ratings
| Parameter | Value |
|---|---|
| Rated current (In) | 1000 A at 40 °C |
| Sensor rating | 1000 A |
| Rated operational voltage (Ue) | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Poles | 3P |
| Rated insulation voltage (Ui) | 1000 V AC 50/60 Hz conforming to IEC 60947-2 |
| Rated impulse withstand voltage (Uimp) | 12 kV conforming to IEC 60947-2 |
| Suitable for isolation | Yes conforming to IEC 60947-2 |
Breaking & withstand capacity
| Parameter | Value |
|---|---|
| Rated ultimate breaking capacity (Icu) | 85 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 85 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Rated service breaking capacity (Ics) | 85 kA at 220/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Rated short-time withstand current (Icw) | 50 kA 3 s conforming to IEC 60947-2 85 kA 1 s conforming to IEC 60947-2 |
| Rated short-circuit making capacity (Icm) | 187 kA 525 V AC at 50/60 Hz 187 kA 690 V AC at 50/60 Hz |
| Performance type | H2A |
Performance
| Parameter | Value |
|---|---|
| Breaking time, max. | 25 ms |
| Closing response time, max. | 70 ms |
| Mechanical durability (cycles) | 12500 cycles without maintenance conforming to IEC 60947-2 25000 cycles with maintenance conforming to IEC 60947-2 |
| Electrical durability (cycles) | 10000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 10000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 |
| Selectivity category | Category B |
Mechanical & connection
| Parameter | Value |
|---|---|
| Control type | Push-button |
| Mounting mode | Fixed |
| Width | 422 mm |
| Height | 352 mm |
| Depth | 297 mm |
| Connection pitch | 115 mm |
Environmental
| Parameter | Value |
|---|---|
| Operating ambient temperature | -25...70 °C |
| Storage ambient temperature | -40...85 °C |
| Pollution degree | 4 conforming to IEC 60664-1 |
| Operating altitude | 0...2000 m without derating 2000 m...5000 m with derating |
Approvals
| Parameter | Value |
|---|---|
| Standards | IEC 60947-2 |
MPN
48017
