Schneider Electric 59648
MPN59648
Obsolete

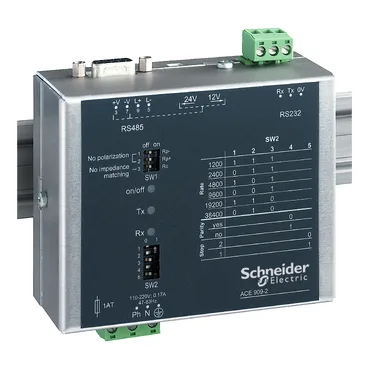

RS232/RS485 converter ACE909-2 for Sepam series 20, 40, 60, 80
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product range | Sepam series 80 NPP Sepam series 80 Sepam series 60 Sepam series 48 Sepam series 40 Sepam series 20 |
| Parameter | Value |
|---|---|
| Mounting mode | Fixed |
| Mounting support | Symmetrical DIN rail Asymmetrical DIN rail |
| Width | 105 mm |
| Height | 105 mm |
| Depth | 65 mm |
| Parameter | Value |
|---|---|
| Operating ambient temperature | -5...55 °C |
| Parameter | Value |
|---|---|
| Data format | 11 bits : 1 start, 8 data, 1 parity, 1 stop |
| Local signalling | LED for energized (front face) LED for Rx activity (front face) LED for Tx activity (front face) |
| Device connection | Converter protocol: CEI 60870-5-103 interface: 1 port RS232 Converter protocol: DNP3 interface: 1 port RS232 Converter protocol: Modbus RTU interface: 1 port RS232 To Sepam protocol: CEI 60870-5-103 interface: 1 port RS485 2-wire To Sepam protocol: distributed power supply RS485 interface: 1 port RS485 2-wire To Sepam protocol: DNP3 interface: 1 port RS485 2-wire To Sepam protocol: Modbus RTU interface: 1 port RS485 2-wire |
| Device short name | ACE909-2 |
| Transmission delay | < 100 ns |
| Overcurrent protection | 0.2...0.79 x In 1 A rating |
| Supply voltage | 110...220 V AC 47...63 Hz tolerance: +/- 10 % |
| Distributed supply voltage | Number of Sepam interfaces: 12 at 12 V DC Number of Sepam interfaces: 12 at 24 V DC |
| Auxiliary connection terminal | Power supply: screw-type connector 2.5 mm² RS232 link: screw-type connector 2.5 mm² RS485 link: screw-type connector 9 pin(s) 2 cable(s) |
| Electromagnetic compatibility | 1 MHz damped oscillating wave: , 0.5 kV differential mode, conforming to IEC 60255-22-1 1 MHz damped oscillating wave: , 1 kV common mode, conforming to IEC 60255-22-1 1.2/50 µs impulse waves: , 1 kV differential mode, conforming to 60255-5 1.2/50 µs impulse waves: , 3 kV common mode, conforming to 60255-5 Fast transient bursts, 5 ns: , 1 kV with direct coupling in differential mode, conforming to IEC 60255-22-4 Fast transient bursts, 5 ns: , 2 kV with direct coupling in common mode, conforming to IEC 60255-22-4 Fast transient bursts, 5 ns: , 4 kV with capacitive coupling in common mode, conforming to IEC 60255-22-4 |
