Schneider Electric 64784
MPN64784
Active

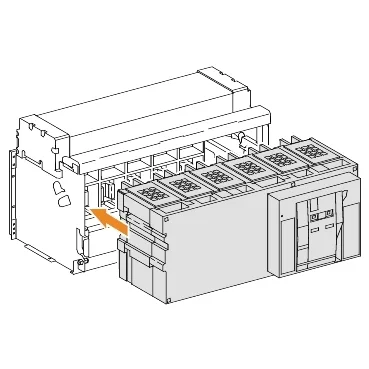

switch-disconnector Masterpact NW40HF - 4000 A - 600 V - 4 poles - draw - UL 489
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Switch disconnector |
| Product name | MasterPact NW UL 489 |
| Range | MasterPact |
| Application | Protection |
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | 240...600 V AC 50/60 Hz |
| Rated operational current (Ie) | 4000 A AC |
| Poles | 4P |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitable for isolation | Yes conforming to IEC 60947-3 |
| Parameter | Value |
|---|---|
| Rated short-time withstand current (Icw) | 100 kA at 220 V 100 kA at 480 V 85 kA at 600 V |
| Breaking capacity code | HF |
| Parameter | Value |
|---|---|
| Mechanical durability (cycles) | 10000 cycles with maintenance 5000 cycles without maintenance |
| Electrical durability (cycles) | 1000 cycles without maintenance |
| Parameter | Value |
|---|---|
| Control type | Push-button |
| Mounting mode | Drawout |
| Mounting support | Chassis |
| Width | 1016 mm |
| Height | 479 mm |
| Depth | 395 mm |
| Connection pitch | 115 mm |
| Parameter | Value |
|---|---|
| IP degree of protection | IP30 |
| Parameter | Value |
|---|---|
| Standards | UL 489 |
MPN
64784
