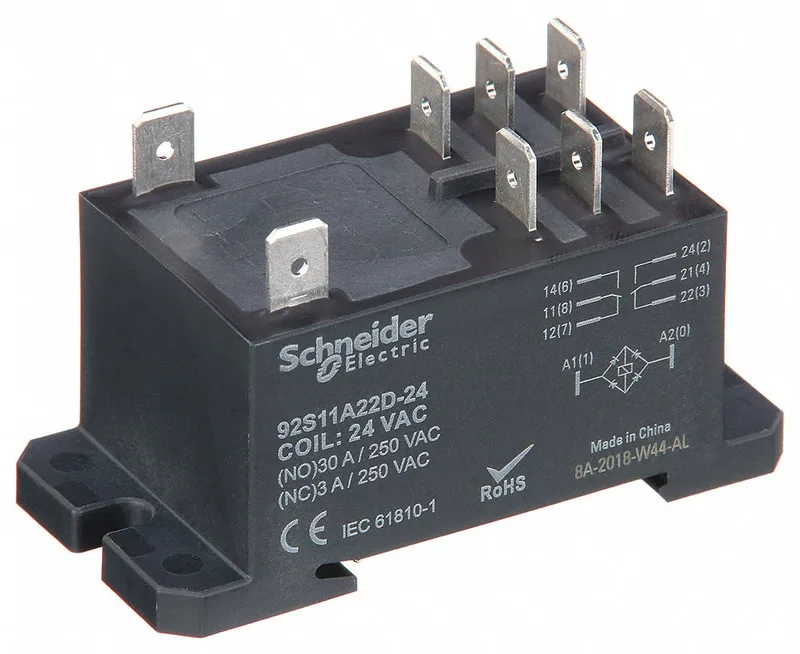

Schneider Electric 92S11A22D-24A
MPN92S11A22D-24A
SCHNEIDER Enclosed Power Relay: DIN-Rail & Surface Mounted, 30 A Current Rating, 24V AC, DPDT
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | 92 Power Series |
Switching & Output
| Parameter | Value |
|---|---|
| Contact form | DPDT |
| Current rating | 30 A |
| Contact rating (AC) | 3 A @ 250/277V6 A @ 250V10 A @ 120V30 A @ 250/277V96 A @ 240V |
| Contact rating (DC) | 3 A @ 28V20 A @ 28V25 A @ 28V |
Electrical
| Parameter | Value |
|---|---|
| Dielectric strength | 1,500V AC Between Contacts; 2,000V AC Between Poles; 4,000V AC Between Coil and Contact |
Input/Control
| Parameter | Value |
|---|---|
| Coil voltage | 24V AC |
| Coil voltage (nominal @ 60 Hz) | 24V AC |
| Status indicator | No Indicator |
| Push-to-test button | No Test Button |
Performance
| Parameter | Value |
|---|---|
| Mechanical life (operations) | 5,000,000 |
| Electrical life (operations) | 100,000 |
Environmental
| Parameter | Value |
|---|---|
| Sealing | Sealed |
Mechanical
| Parameter | Value |
|---|---|
| Mounting style | DIN-Rail & Surface |
| Electrical connection type | Tab |
| Number of pins / terminals | 8 |
Ratings & Approvals
| Parameter | Value |
|---|---|
| Motor rated | Yes |
| Horsepower rating @ 120 V AC | 1 hp |
| Horsepower rating @ 240 V AC | 3 hp |
MPN
92S11A22D-24A
