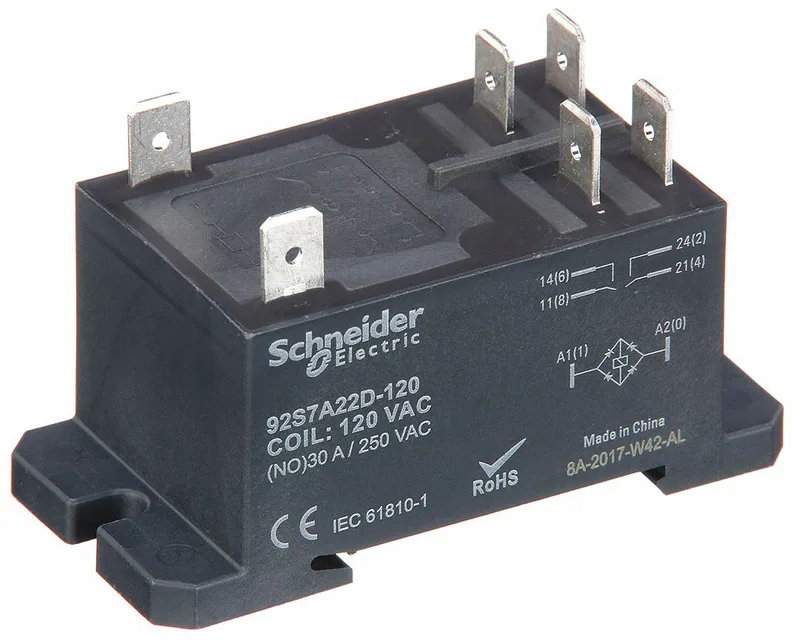

Schneider Electric 92S7A22D-120A
MPN92S7A22D-120A
SCHNEIDER Enclosed Power Relay: DIN-Rail & Surface Mounted, 30 A Current Rating, 120V AC, DPST-NO
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 92 Power Series |
| Parameter | Value |
|---|---|
| Contact form | DPST-NO |
| Current rating | 30 A |
| Contact rating (AC) | 3 A @ 250/277V6 A @ 250V10 A @ 120V30 A @ 250/277V96 A @ 240V |
| Contact rating (DC) | 3 A @ 28V20 A @ 28V25 A @ 28V |
| Parameter | Value |
|---|---|
| Dielectric strength | 1,500V AC Between Contacts; 2,000V AC Between Poles; 4,000V AC Between Coil and Contact |
| Parameter | Value |
|---|---|
| Coil voltage | 120V AC |
| Coil voltage (nominal @ 60 Hz) | 120V AC |
| Status indicator | No Indicator |
| Push-to-test button | No Test Button |
| Parameter | Value |
|---|---|
| Mechanical life (operations) | 5,000,000 |
| Electrical life (operations) | 100,000 |
| Parameter | Value |
|---|---|
| Sealing | Sealed |
| Parameter | Value |
|---|---|
| Mounting style | DIN-Rail & Surface |
| Electrical connection type | Tab |
| Number of pins / terminals | 6 |
| Parameter | Value |
|---|---|
| Motor rated | Yes |
| Horsepower rating @ 120 V AC | 1 hp |
| Horsepower rating @ 240 V AC | 3 hp |
MPN
92S7A22D-120A
