Schneider Electric A9C52363

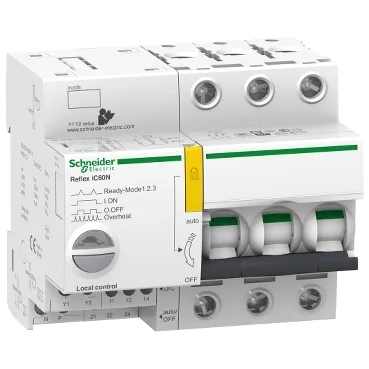

Schneider Electric A9C52363 Reflex iC60N 63A 3P C MCB

MPN A9C52363
Obsolete

Schneider Electric Acti9 Reflex iC60N, integrated control circuit breaker, 63 A, 3P, curve C, 20 kA breaking capacity.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

A9C52363 specifications
ParameterValue
Trip unit typeThermal-magnetic
Control signal typeMaintained Impulse
Main product or component typeIntegrated control circuit breaker
Coil voltage230 V AC 50/60 Hz 24 V AC 50/60 Hz 48 V AC 50/60 Hz 24 V DC 48 V DC
Insulation voltage ui500 V AC
Breaking capacity20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
IP ratingIP20
Pollution degree3
ColorWhite
Depth77 mm
Width99 mm
Height84 mm
Electrical life cyclesAC-1: 50000 cycles AC 50 Hz
Mechanical life cycles50000 cycles
ApplicationDistribution Control

Product details

The Schneider Electric A9C52363 is a Reflex iC60N integrated control circuit breaker — a thermal-magnetic MCB with a built-in remote control function, rated 63 A, 3 poles, curve C. It combines overcurrent protection with the ability to switch the load on and off via a control signal, eliminating the need for a separate contactor in distribution and control applications.

Rated 20 kA Icu at 220–240 V AC and 10 kA Icu at 380–415 V AC per EN/IEC 60947-2. That N-class breaking capacity means it coordinates well downstream of a higher-rated upstream device — the site electrical engineer can build a selective trip scheme without oversizing every branch breaker. The 63 A rating and 3-pole configuration cover a standard three-phase subfeed or a large single-phase load.

Control and signalling

Control voltage options are 230 V AC, 24 V AC, 48 V AC, 24 V DC, or 48 V DC — the same unit accepts maintained or impulse commands. The local signalling LEDs (green for ON, red for fault, flashing for tripped or ready) give the field service tech immediate status without a meter. The 77 mm depth and 99 mm width fit standard distribution board cutouts — 11 modules of 9 mm pitch.

The paperwork is straightforward — RoHS and REACH declarations are standard for the Acti9 family, and the IEC 60947-2 certification covers most global acceptance. No special customs classification issues; it falls under standard HS code for circuit breakers.

MPN
A9C52363
