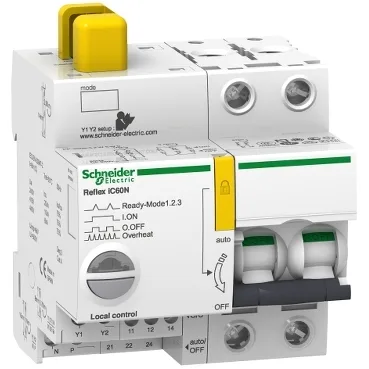

The Schneider Electric A9C62210 is an Acti9 Reflex iC60N integrated control circuit breaker — a 2-pole device that combines overcurrent protection (thermal-magnetic trip, curve C) with remote switching capability in a single 9-pitch (81 mm wide) module. It is rated 10 A, with a breaking capacity of 20 kA Icu at 220–240 V AC and 10 kA Icu at 380–415 V AC, per EN/IEC 60947-2.
Control and integration
The control circuit accepts multiple voltage options: 230 V AC, 24 V AC/DC, or 48 V AC/DC. Remote control can be by pulse (impulse), maintained (continuous command), or maintained very low voltage signal. This flexibility lets the breaker integrate with building management systems, PLC digital outputs, or manual pushbutton stations.
Key ratings in context
Electrical durability is 50,000 cycles under AC-1 resistive load; mechanical durability matches at 50,000 cycles. Earth-leakage protection requires a separate block (Vigi module).
