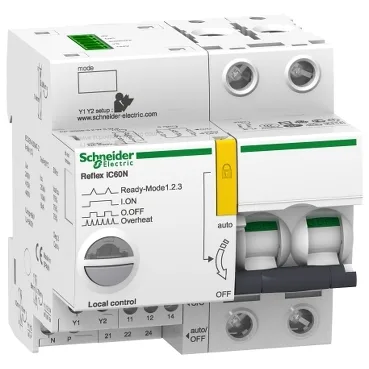

A9C62225 Reflex iC60N Ti24 25A 2P Curve C MCB

MPN A9C62225
Active

Schneider Electric Acti9 Reflex iC60N Ti24, A9C62225, integrated control circuit breaker, 25 A, 2P, curve C, 20 kA breaking capacity at 230 V AC.

$417.43 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

A9C62225 specifications
ParameterValue
Trip unit typeThermal-magnetic
Main product or component typeIntegrated control circuit breaker
Coil voltage230 V AC 50/60 Hz 24 V AC 50/60 Hz 48 V AC 50/60 Hz 24 V DC 48 V DC
Insulation voltage ui500 V AC
IP ratingIP20
Pollution degree3
ColorWhite
Depth77 mm
Width81 mm
Height84 mm
Electrical life cyclesAC-1: 50000 cycles AC 50 Hz
Mechanical life cycles50000 cycles
ApplicationDistribution Control

Product details

The A9C62225 is a Reflex iC60N Ti24 integrated control circuit breaker from the Acti9 range, combining overcurrent protection with local and remote switching in a single DIN-rail module. It's a 25 A, 2-pole device with a C curve, rated for 230 V AC supply voltage and offering a 20 kA breaking capacity at 230...240 V AC per EN/IEC 60947-2. The thermal-magnetic trip unit handles both overload and short-circuit faults, while the integrated control allows ON/OFF toggle, remote pulse, or continuous command via the control circuit voltage options (230 V AC, 24 V AC, 48 V AC, 24 V DC, 48 V DC). This is a panel-building part for distribution and control circuits where you need to save space and wiring by combining a contactor and an MCB in one unit.

At 380...415 V AC, the breaking capacity drops to 10 kA Icu, so if you're on a 400 V system, that's your number. The 2 poles protect both phase and neutral in a single-phase circuit, or two phases in a three-phase system. The 500 V AC rated insulation voltage (Ui) tells you the insulation system is rated for that voltage class, which is fine for standard 230/400 V networks.

The fixed mounting mode means it's not a plug-in base; you wire it directly. At 81 mm wide (9 x 9 mm pitches), it takes up 9 module spaces on the rail, so plan your enclosure fill accordingly. Depth is 77 mm, height 84 mm. The padlockable handle (OFF position only) adds lockout/tagout capability for maintenance safety. The green LED for ON, red for fault, and flashing patterns for overheat/trip/ready give you status at a glance without needing a separate indicator.

Durability and environmental ratings

Electrical durability is rated at 50,000 cycles under AC-1 (resistive load) at 50 Hz — that's the expected life before the contacts wear out under normal switching. Mechanical durability matches at 50,000 cycles. Tropicalisation class 2 indicates it's treated for operation in high-humidity conditions (93% RH at 40 °C). Earth-leakage protection requires a separate block — this breaker doesn't include integral RCD protection.
