Schneider Electric A9C62410 — Contactors

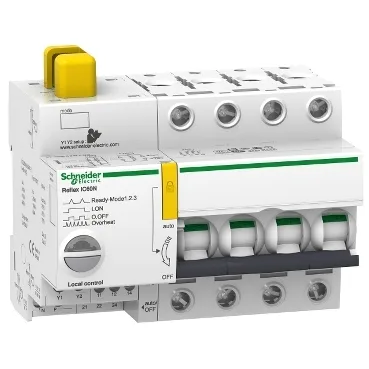

Schneider Electric A9C62410 Reflex iC60N, 10 A 4P C-curve MC

MPNA9C62410
Obsolete

Schneider Electric Acti9 Reflex iC60N integrated control circuit breaker, A9C62410, 10 A rated, 4 poles, curve C, 20 kA breaking capacity at 230 V AC.

$345.24Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

A9C62410 — Identification
ParameterValue
Product / component typeIntegrated control circuit breaker
Series / rangeActi9
A9C62410 — Contacts & Poles
ParameterValue
Pole configuration4P
A9C62410 — Environmental
ParameterValue
IP degree of protectionIP20 conforming to IEC 60529
A9C62410 — Mechanical
ParameterValue
Width117 mm
Height84 mm
Depth77 mm

Product details

Rated at 10 A with a C-curve trip characteristic, it uses a thermal-magnetic trip unit and offers a breaking capacity of 20 kA Icu at 230 V AC (10 kA at 415 V AC) per EN/IEC 60947-2.

Control and signalling

The control circuit accepts 230 V AC, 24 V AC, 48 V AC, 24 V DC, or 48 V DC, with three control modes: maintained (ON/OFF button), maintained very low voltage, and impulse (toggle remote control by pulse). Local signalling includes a green LED for device ON, a flashing green LED for device ready, a flashing red LED for device tripped, a steady red LED for fault, and a flashing LED for device overheat — a full status panel on the front face that saves a tech from reaching for a meter during fault isolation.

Fixed mounting on a 35 mm symmetrical DIN rail, 4-pole width at 13 x 9 mm pitches (117 mm wide). Depth is 77 mm, height 84 mm. IP20 finger-safe terminals per IEC 60529. Earth-leakage protection requires a separate block, not integrated.

Frequently asked questions

What are the key ratings for the A9C62410?

Rated current 10 A, 4 poles, curve C trip characteristic. Breaking capacity 20 kA Icu at 230 V AC and 10 kA Icu at 415 V AC per EN/IEC 60947-2. Control voltages available: 230 V AC, 24 V AC, 48 V AC, 24 V DC, 48 V DC.

What is the physical size of the A9C62410?

Width 117 mm (13 x 9 mm pitches), depth 77 mm, height 84 mm. Mounts on 35 mm symmetrical DIN rail.

What compliance documentation is available for the A9C62410?

The part is certified to EN/IEC 60947-2 for breaking capacity and IEC 60529 for IP20 protection. RoHS, REACH, UL, and other compliance documentation is available from Schneider Electric upon request.
