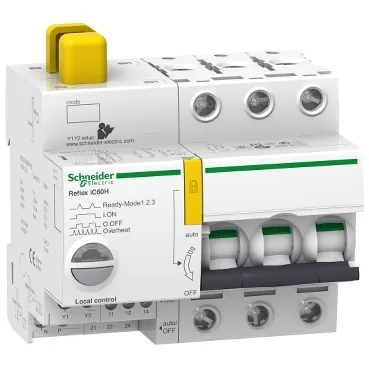

Schneider Electric A9C65340
MPNA9C65340
Obsolete
Reflex iC60H Ti24 40 A 3P curve C integrated control MCB
$580.15Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Remote control by pulse Toggle Remote control by continuous command ON/OFF button |
| Network type | AC |
| Control signal type | Maintained Impulse Maintained very low voltage |
| Product or component type | Integrated control circuit breaker |
| Supply voltage | 230 V AC at 50/60 Hz |
| Coil voltage | 230 V AC 50/60 Hz 24 V AC 50/60 Hz 48 V AC 50/60 Hz 24 V DC 48 V DC |
| Voltage | 500 V AC |
| Breaking capacity | 30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Current | 40 A |
| Breaking capacity code | H |
| Network frequency | 50/60 Hz |
| Poles description | 3P |
All specifications
| Parameter | Value |
|---|---|
| Number of protected poles | 3 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| Pollution degree | 3 |
| Relative humidity | 93 % at 40 °C |
| Depth | 77 mm |
| Width | 99 mm |
| Color | White |
| Height | 84 mm |
| Electrical durability | AC-1: 50000 cycles AC 50 Hz |
| Mechanical durability | 50000 cycles |
| Range | Acti9 |
| Curve code | C |
| 9 mm pitches | 11 |
| Tropicalisation | 2 |
| Local signalling | Flashing LED: device ready Flashing LED: device tripped Green LED: device ON Flashing LED: device overheat Red LED: fault |
| Device short name | Reflex iC60H |
| Device application | Control Distribution |
| Trip unit technology | Thermal-magnetic |
| Earth-leakage protection | Separate block |
| Provision for padlocking | Padlockable |
| Contact position indicator | Yes |
| Locking options description | Padlock in OFF position |
MPN
A9C65340
