Schneider Electric A9C66310 — Contactors

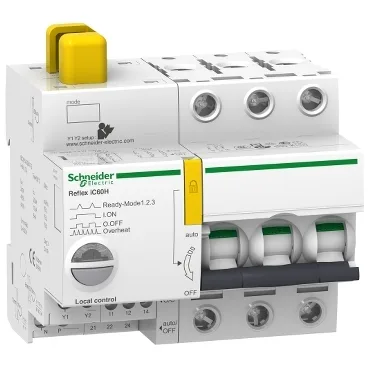

Schneider Electric A9C66310 Reflex iC60H, 10 A 3P Curve D MC

MPNA9C66310
Obsolete

Schneider Electric Acti9 Reflex iC60H, integrated control circuit breaker, 10 A, 3P, curve D, thermal-magnetic trip, 30 kA breaking capacity.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

A9C66310 — Identification
ParameterValue
Product / component typeIntegrated control circuit breaker
Series / rangeActi9
A9C66310 — Contacts & Poles
ParameterValue
Pole configuration3P
A9C66310 — Environmental
ParameterValue
IP degree of protectionIP20 conforming to IEC 60529
A9C66310 — Mechanical
ParameterValue
Width99 mm
Height84 mm
Depth77 mm

Product details

It's a 3-pole, 10 A device with a D-curve trip characteristic, designed for distribution and control applications where you need both circuit protection and the ability to toggle the load remotely.

The breaking capacity is 30 kA Icu at 220–240 V AC and 15 kA Icu at 380–415 V AC, per EN/IEC 60947-2. Control voltage options cover 230 V AC, 24 V AC, 48 V AC, 24 V DC, and 48 V DC, giving flexibility for both mains-voltage and low-voltage control schemes. The control type accepts maintained, maintained very low voltage, or impulse signals.

Deployment context

Padlockable in the OFF position for lockout/tagout. Local signalling via a multi-colour LED shows device ON (green), tripped (flashing), fault (red), or overheat (flashing) — useful for quick visual diagnostics on the panel door.

Frequently asked questions

What are the key ratings for the A9C66310?

It's a 10 A, 3-pole, curve D integrated control circuit breaker with a breaking capacity of 30 kA Icu at 240 V and 15 kA Icu at 415 V AC, per EN/IEC 60947-2. Control voltage options include 230 V AC, 24 V AC, 48 V AC, 24 V DC, and 48 V DC.

What compliance documentation is available for the A9C66310?

The device carries EN/IEC 60947-2 certification for breaking capacity and IP20 per IEC 60529. It's part of the Acti9 range which typically includes RoHS and REACH compliance documentation from Schneider Electric.

MPN
A9C66310
