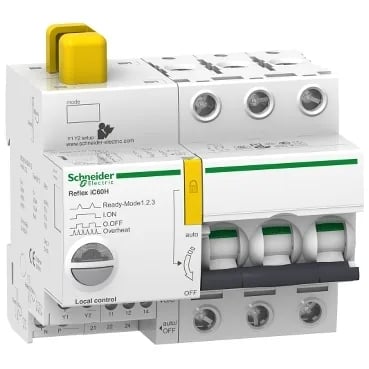

Schneider Electric A9C66325 Reflex iC60H, 25 A, 3P, Curve D

MPN A9C66325
Obsolete

Schneider Electric Acti9 Reflex iC60H, integrated control circuit breaker, 25 A, 3P, curve D, 30 kA breaking capacity at 230 V AC.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

A9C66325 specifications
ParameterValue
Trip unit typeThermal-magnetic
Main product or component typeIntegrated control circuit breaker
Coil voltage230 V AC 50/60 Hz 24 V AC 50/60 Hz 48 V AC 50/60 Hz 24 V DC 48 V DC
Insulation voltage ui500 V AC
Breaking capacity30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
IP ratingIP20
Pollution degree3
ColorWhite
Depth77 mm
Width99 mm
Height84 mm
Electrical life cyclesAC-1: 50000 cycles AC 50 Hz
Mechanical life cycles50000 cycles
ApplicationControl Distribution

Product details

It combines overcurrent protection (thermal-magnetic trip) with local and remote switching control in a single 3-pole unit, rated 25 A with a D curve.

Breaking capacity is 30 kA Icu at 220...240 V AC and 15 kA Icu at 380...415 V AC, both per EN/IEC 60947-2. The H breaking capacity code indicates a high-interrupting rating for this frame size.

Control and signalling flexibility

Control options include ON/OFF toggle, remote pulse, and remote continuous command. Control circuit voltage options cover 230 V AC, 24 V AC, 48 V AC, 24 V DC, and 48 V DC — pick the one that matches your PLC or pushbutton loop. Local signalling uses a multi-colour LED: green for ON, flashing green for overheat, flashing red for tripped, red for fault. The contact position indicator and padlock provision (OFF position) add lockout/tagout capability without an external accessory.

Dimensions are 99 mm wide (11 x 9 mm pitches), 84 mm high, 77 mm deep — fits standard Acti9 enclosures and leaves room for adjacent modules. IP20 finger-safe terminals per IEC 60529; pollution degree 3 (conductive or dry non-conductive pollution). Tropicalisation class 2 and 93 % relative humidity at 40 °C mean it handles warm, humid panel environments without derating.
